INFO

Product category / Group
Other lifting machines
Brand / model
PM 65026 J1416
Location
Milford, Massachusetts
Country
United States
General grade
1
2
3
4
5
Mascus ID
D8B06CDD

DETAILS

Maximum lift capacity
65,000 ton
Maximum lift height
1.83 m
Other information/spec

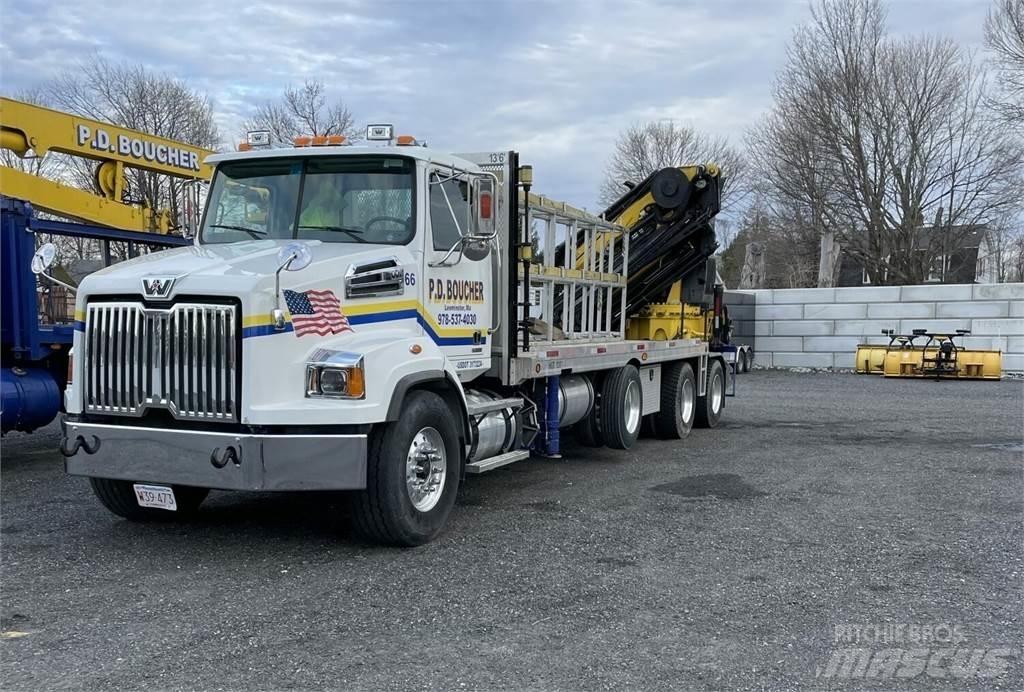

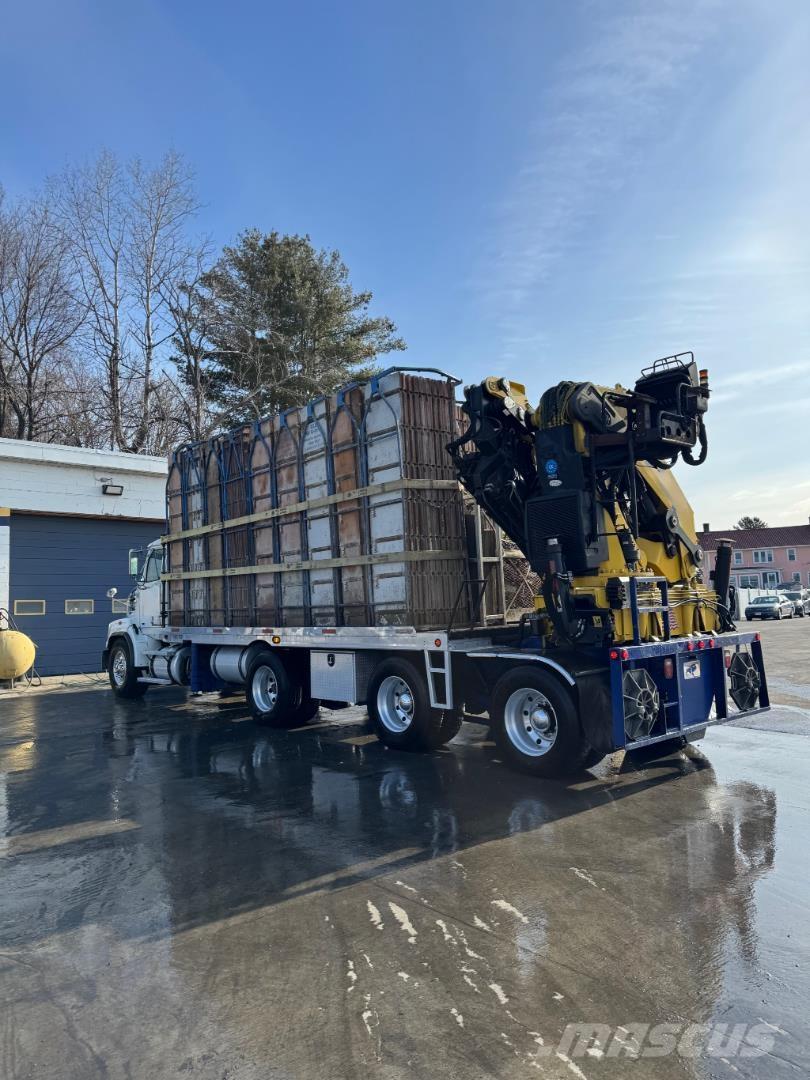

Boom: PM 65026 + J1416 Knuckle Boom (new in 2015) Folding Hyd 6 ext Knuckle Boom with Detachable 6 ext jib 92′ Horizontal Reach Main Boom Horizontal Capacity: 48,500 lb ... 8’2″ 28,260 lb ... 14′ 5″ 15,340 lb ... 25′ 3″ 10,000 lb ... 37′, 7,210 lb... 50′ 2″  Jib Horizontal Capacity: 3,850 lb ... 59′ 1″ 3,000 lb ... 74′ 6″ 2,340 lb ... 81′ 1″ 2,100 lb ... 86′ 8″ 1,800 lb ... 92′ Maximum Lifting Moment 59 mt (429,640 ft-lbs) PM Power-Link connections at Main, Knuckle & Jib Cylinders Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders 180 degree flip up Hydraulic Extra Wide Main outriggers at pedestal – 28′ – 7″ span 360 degree full load chart stability Hydraulic Oil Cooler High pressure return filter and min. 100-gallon hyd aluminum oil tank with gate valves mounted at front under deck DANFOSS Proportional Control Valve at Top Seat with Ladder Access- & SCANRECO Proportional Radio Remote Control PM- Power Tronic load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode Deck: 21′ x 102″ Aluminum Flat Deck Checker plate steel deck surface With 1″ lip for form cages Winch bar holder and winch bar Ladder 6 sliding winches with 3″ straps Reflectors and 5-side lights Complete with removable centre divider Truck: Used – 2015 Western Star 4700 Tri-Axle Diesel Truck: 86,000 lb GVWR Truck Cab White DDC-13 470 hp – 1,650 ft/lbs torque Automated Eaton 18 spd Trans. 20,000 lb fronts 425/65R22.5 Floatation tires on Aluminum rims 22,000 lb self-steer lift axle 101″ ahead of 1st drive wheel w/ 4 tires for max payload 46,000 LB Rears on Chalmers Suspension with 11 R22.5 tires on steel white rims 326″ wheel base Full double frame chassis Truck Features Include: Air Cond., AM/FM stereo, tilt/telescopic steering, power windows & locks, 2-man pass seat, chrome bumper & grill, painted ext sun visor, diff locks with rear wheel lock ups, dual hood mounted mirrors, air ride cab, single 80 gal alum fuel tank, trailer air tow package, full 4-wheel lock ups, etc … 69,365 Miles | 5663 Hours CALL FOR DETAILS AT:  1-508-769-7599 Show more

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts United States
