PM 150028SP

Price excl. VAT

POA

Compnay LOGO
Images6
PM 150028SP Other lifting machines
PM 150028SP Other lifting machines
PM 150028SP Other lifting machines
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
Other lifting machines
Brand / model
PM 150028SP
Condition
New/unused
Location
Milford, Massachusetts
Country
United States
General grade
1
2
3
4
5
Mascus ID
B5431BD7

DETAILS

Other information/spec

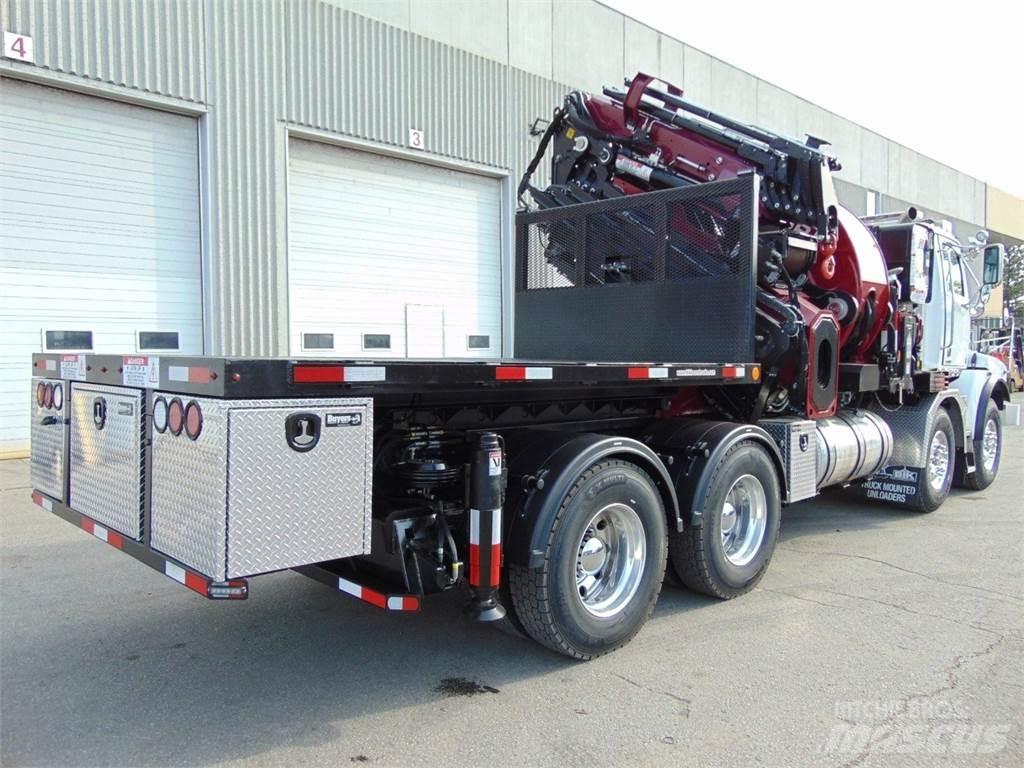

BOOM DETAILS NEW –  PM 150028SP+J2416 KNUCKLE BOOM Handles 3,200 lbs ... 106′ Horizontal – 130′ Total Vertical Reach w/Two Extra Pull-Out Extensions (120′ Horizontal Reach) – Best Capacity in its Class!! PM Connecting Rods at First Boom and Knuckle 15 Degree Negative Angle at 1st Knuckle, 25 Degree Negative Angle at Jib Continuous Rotation and Dual Planetary Gear Rotation Special Extra High Tensile Steel Structure (Unit Weighs Only a Few Hundred Pounds More Than PM 85 Version) Hydraulic Extra-Wide Main Outriggers at Pedestal – 33′ 6″ Span – Hydraulic Tilting when Retracted Auxiliary 26′ Spread Stabilizers Installed at Rear Behind Drives, Unfinished at Rear Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank for Boom Danfoss Proportional Control Valve & SCANRECO Proportional Radio Remote Control PM Power Tronic Electronic System Allowing Constant Crane Monitoring & Visual Display with 5-Level Stability Control System SCANRECO Radio Remote Control Includes:  2 Batteries, In-cab Charger, Back-up Cord, Crane Painted PM Blue, Load Chart in ft & lbs Load Tested & Installed at End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards DECK DETAILS NEW  –  15′ X 102″ REMOVABLE STEEL CHECKER PLATE FLAT DECK Also Included Are:   5th Wheel Installed Over Tandem with Bracket Receiver Hook for Removable Deck, Program Remote Control to Include Engine Start/Stop and Variable Engine RPM, Auxiliary Extra-Wide Out and Down Stabilizers Mounted at Rear Under Frame, 24″ Aluminum Tool Box Under Deck, Dual Front Bumper Stabilizer on Integral 24″ Front Frame Extension, 6 PVC Stabilizers Pads with Holders Optional Features Available: Add Winch on Main Boom with Ability to Lift from Jib and Main Boom Removable 4-Ton Rated Hydraulic Hook Rotator Installed at End of Boom Aluminum Man Basket TRUCK DETAILS NEW –  WESTERN STAR 4800 SLOPED NOSE T/A STEER – T/A REAR TRACTOR – 4 AXLE  DDC-13 Diesel – 500 hp with Jake Eaton Ultrashift Automated 18 Speed Transmission 20,000 lb Fronts with 425/65R22.5 Tires 20,000 lb Self-Steer Lift Axle Ahead of T/A Under Boom 50,000 lb Rears on Air Ride Suspension Double Frame, 270″ wb Polished ALCOA Aluminum Wheels – Front and Outer Rear Chrome Grill & Bumper Single 80-Gallon Aluminum Fuel Tank Loaded with Options Including:  A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior SS Sun Visor, 4 Wheel Lock-ups, Power Window, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, 5th Wheel on at T/A w/Ramps, etc… Show more

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts United States
