Horyong BMK-403 ECO
Price excl. VAT
Print
INFO
Product category / Group
Other lifting machines
Brand / model
Horyong BMK-403 ECO
Mnftr year
2018
Hour meter reading
287 h
Location
Duisburg, Nordrhein-Westfalen
Country
Germany
General grade
1
2
3
4
5
Mascus ID
A65059D6
PRICING
Choose your currency
DETAILS
Amount of previous owners
1
Gross Weight
4,019 kg
Maximum lift capacity
4,200 ton
Max lifting capacity at end of jib
3,000 ton
Min boom length
3.07 m
Boom length
6.80 m
Min luffing jib
2.24 m
Luffing jib
2.24 m
Jib length of crane
6.80 m
Maximum lift height
10.2 m
Hook height of crane - horizontal jib
8.40 m
Hook height of crane - luffed jib
2.21 m
Upper engine
see chassis
Upper hours
228 h
Original colour
Silber-Grün
Carrier engine
Elektro-Motor mit Akkus
Engine manufacturer
Elektor-Motor mit Akkus
Transport dimensions (LxWxH)
435000 x 157000 x 205000 mm
Carrier type
Wheeled
Tyre brand
NM-Bereifung
Front tyres remaining
90
Rear tyres remaining
90
Production country
South Korea
Delivery terms
FCA, CPT, EXW
Certificates
CE, TÜV
Attachments
Hakenflasche 1-rollig, max. Traglast 4,2 t
Klappspitze, max. Traglast 1,22 t
Accessories
Hook blocks
Other information/spec

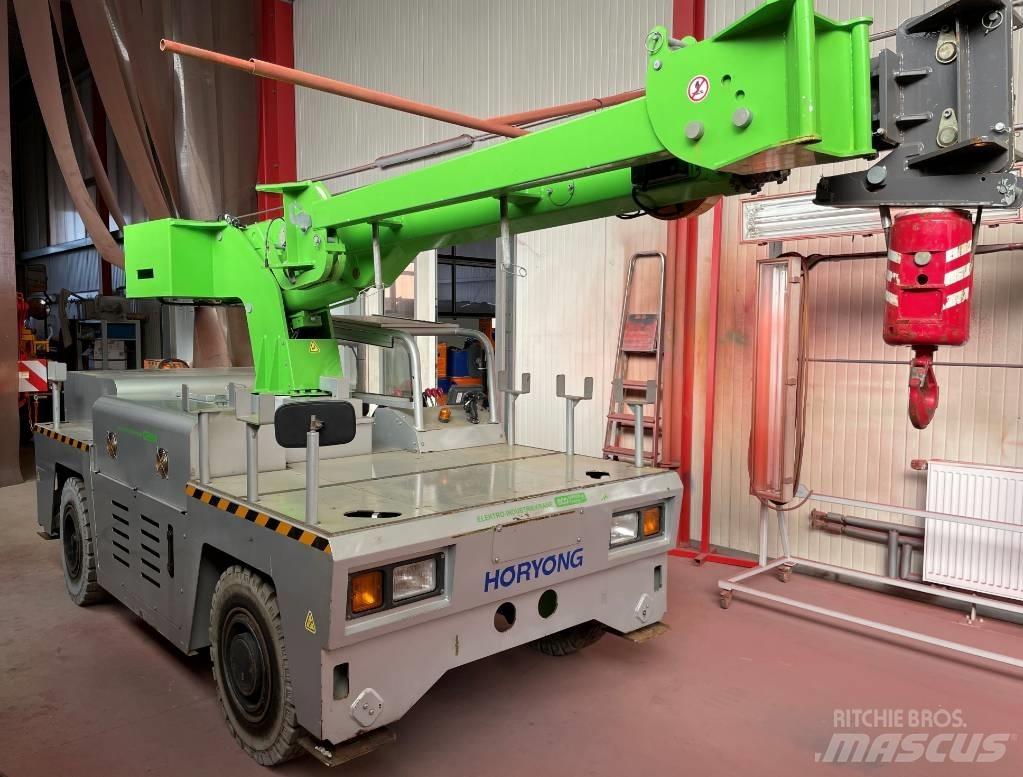

Battery industrial yard crane HORYONG BMK-403 ECO, used unit
battery drive, CE 2018, approx. 287 working hours
Pick+carry system, outriggers and Carry deck
TECHNICAL DETAILS:
max. lifting capacity 4,2 t x 0,9 m
max. load pick + carry 2,9 t
max. load on carry deck 2,5 t
max. working range 8,2 m
max. hook height: 10,2 m
DIMENSIONS & WEIGHT
length 4.350 mm
width 1.570 mm,
height 2.050 mm
total weight of crane: 4.019 kg
outrigger base: 2.330 mm x 3.330 mm
CRANE EQUIPMENT:
telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections
fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50°
one winch
360° slewing range unlimited
Electronical Safe Load Indicator System Rayco Wylie i4500
working range limiter
working light, emergency stop, round-about light
hook block 1-sheave, max. 4,0 t lifting capacity
drive 4 x 2 x 2
Carry-Deck for goods, size 1,55 m², max. load 2,9 t
3 pieces pipe holders / transport holders
4-point hydraulic outriggers, front and rear
electric engine with batteries, 2x 10 kW, 72V / 300 Ah,
rechargable batteries, integrated battery charger
max. speed of crane is 6 km/h
4x non marking tires
open crane driver cabin with lattice protection roof, operation panel
The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Germany
