INFO

Product category / Group
Mobile crushers
Brand / model

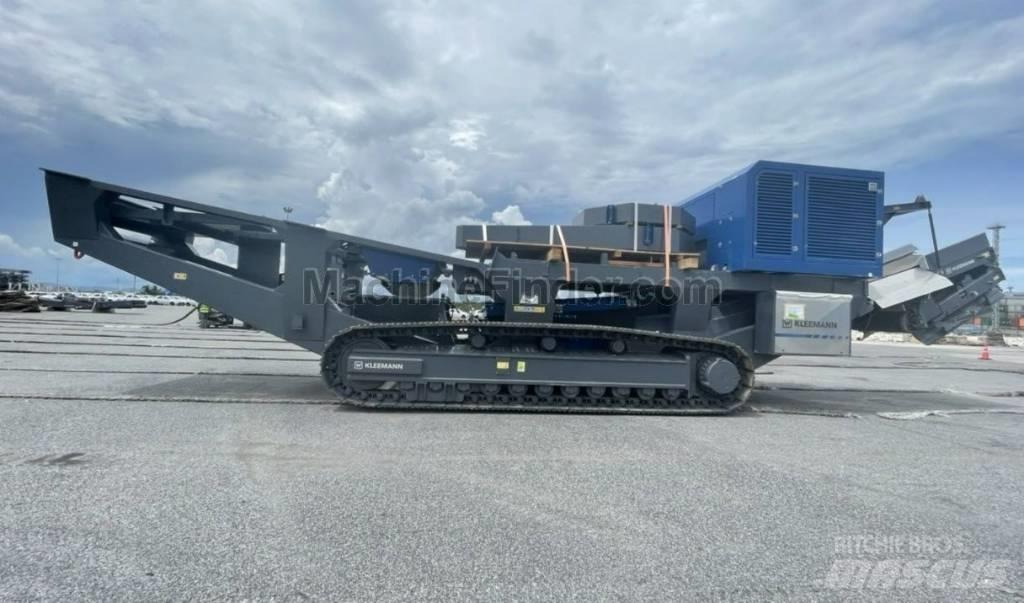

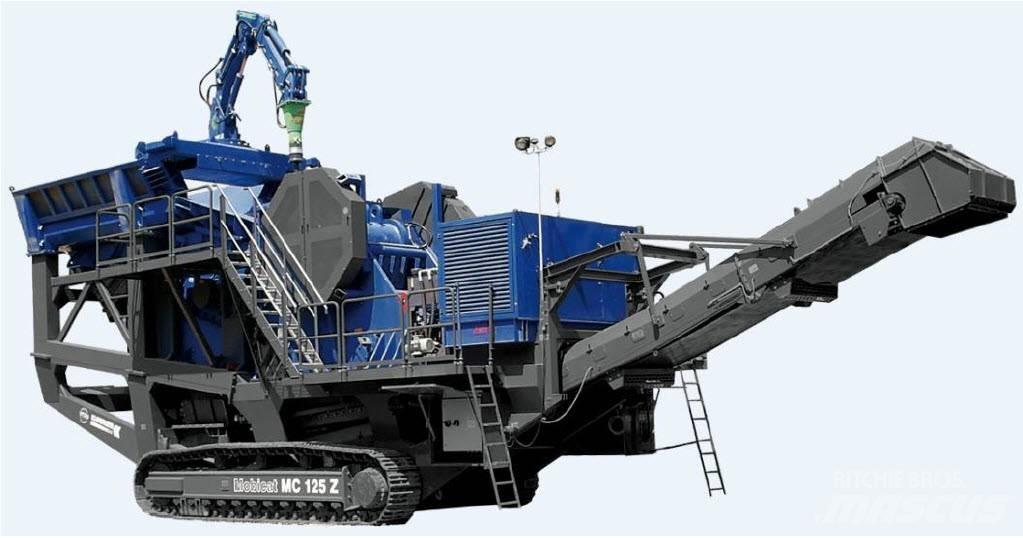

Kleemann MC125Z
Mnftr year
2021
Hour meter reading
372 h
Country
Germany
Mascus ID
A6CE9244

DETAILS

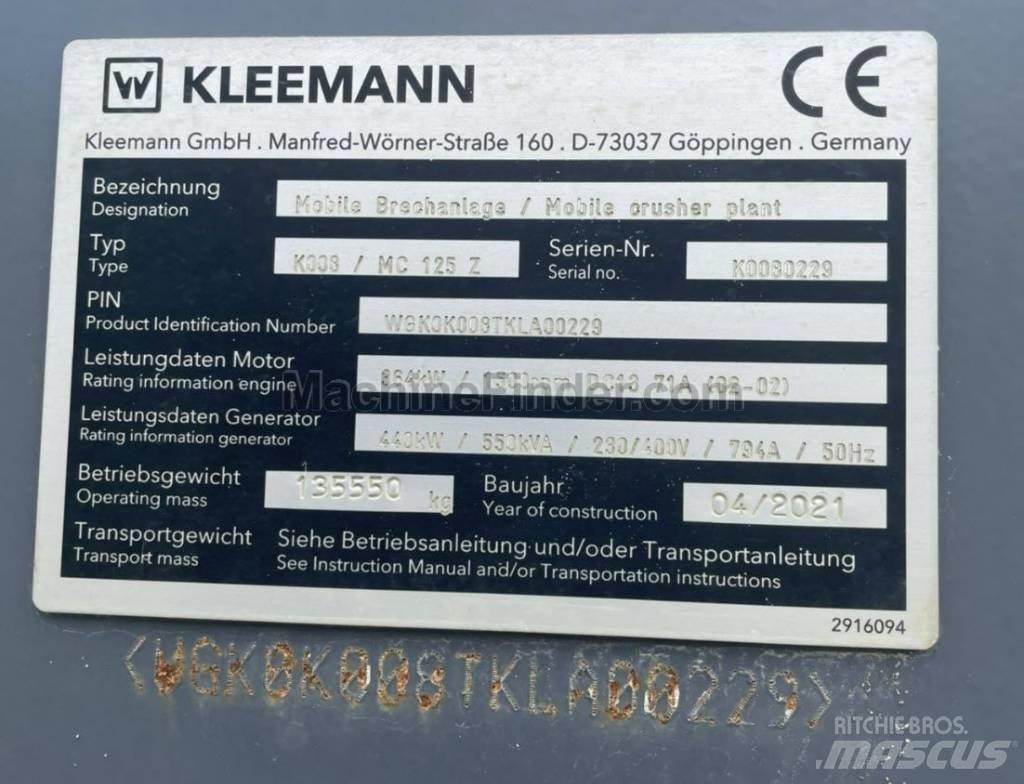

Manufacturing / Serial number
K0080229
Gross Weight
130,000 kg
Crusher operation
Primary
Crusher type
Jaw crusher
Emission level
Stage IIIA / Tier III
Engine
DC 13
Engine Manufacturer
Scania
Production country
Germany
Other information/spec
Power supply unit SCANIA (Stage 3a) SCANIA Diesel motor type DC 13 with waste gas supercharger (stage 3a) capacity: 364 kW at 1500 Rpm., water-cooled generator: Leroy Somer nominal capacity: 550 kVA fuel tank: contents approx. 700 lts. Side discharge conveyor: series: profile steel construction axle distance: 8 m belt width: 1000 mm discharge height: approx. 4000 mm Feeding material: natural stones like granite etc. up to max. 1200x900 mm depending on the required final grain size Feeding capacity: up to 600 t/h depending on the kind and composition of the feeding material as well as on the size resp. quantity of the prescreened aggregates and the final grain sizes Crushing capacity: approx. 175-230 t/h at a gap setting of 100 mm approx. 240-310 t/h at a gap setting of 130 mm Transport measurements: width: max. 3600 mm Jaw crusher as well as feeding unit dismounted for transport. weight: 130 t (operating weight without options) 1 single toggle jaw crusher SStR 1250 x 1000 feeding opening: 1250 x 1000 mm crusher weight: approx. 49.000 kg MACHINE IS LOCATED IN THAILANDShow more

Kleemann GmbH

Manfred-Wörner-Str. 160 73037 Göppingen Baden-Württemberg Germany
