Bandit Beast 268oT

Price excl. VAT

POA

Compnay LOGO
Images35Videos1
Bandit Beast 268oT Mills / Grinding machines
Bandit Beast 268oT Mills / Grinding machines
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
Mills / Grinding machines
Brand / model
Bandit Beast 268oT
Hour meter reading
4,855 h
Location
Llangyfelach
Country
United Kingdom
Mascus ID
5DDD5484

DETAILS

Internal stock no.
PC2024-0028
Engine
755HP CAT Diesel
Engine manufacturer
CAT
Documents
Flyer-2680XP-TRACK-WEB.pdf
Other information/spec

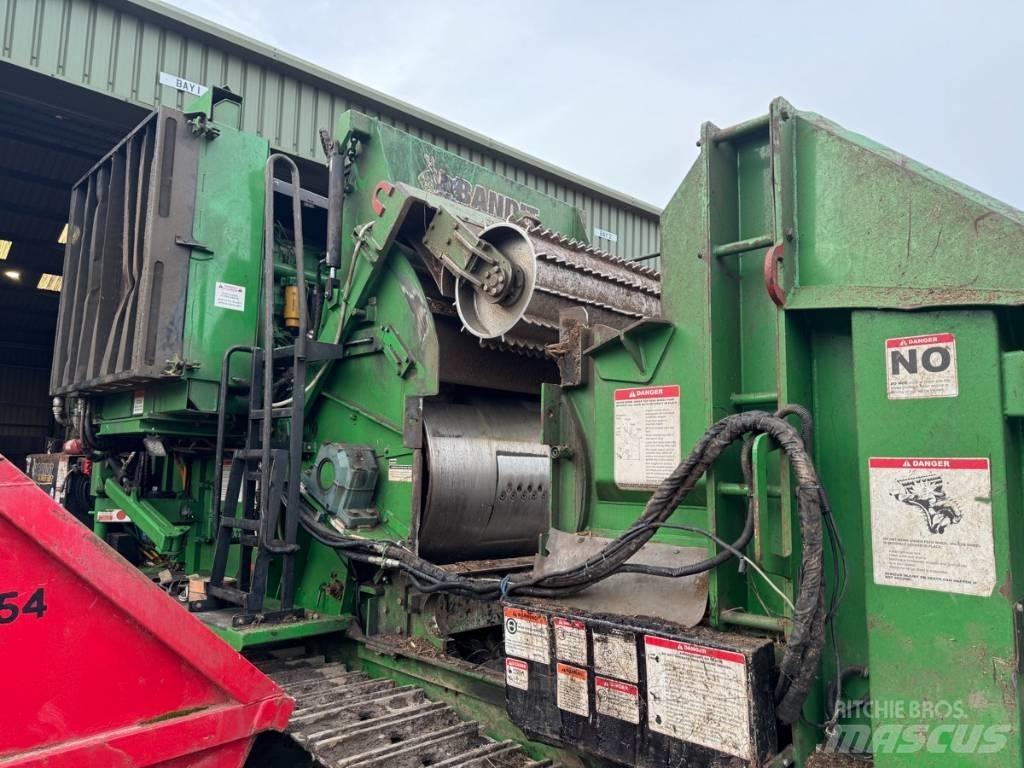

The Beast® Model 2680XP track features the same cuttermill as the 3680XP track but comes in a more compact size and lighter weight weighing around 68,000 pounds. The 2680XP track is equipped with a Caterpillar C18, 755 horsepower engine, 42” diameter by 63” wide cuttermill, and a 35″ high x 60″ wide mill opening. This machine uses a 30 or 60-tooth cuttermill running Bandit’s saw-tooth style cutterbodies that regulate the size of the tooth’s bite. Most of the material is sized in the initial cut, so material exits the large screening area quicker. The cuttermill on the 2680XP track is larger in diameter compared to most competitive grinders allowing it to process larger diameter material with less vibration while using less horsepower and fuel. A wide variety of tooth and screen options are available to adequately process and size material. A single screen and gate can easily be changed from the side of the grinding chamber while utilizing the standard screen changing arm. The 2680XP track comes equipped with a Caterpillar 320L steel track undercarriage and all track and grinding functions are controlled with a wireless radio remote control with tether back-up. A 12′ 10″ long x 60″ infeed with double slat design track style infeed conveyor provides ample room for feeding a wide variety of material. A 20″ diameter feed wheel further assists with pulling material into the mill. Proportional feed is also standard with 6-speed adjustments to allow for maximum productivity and fuel efficiency. 755HP CAT Diesel 30ft Discharge Magnet Many diff screens 2 X Chipping drums 9 pocket and 1 X 60 Tooth head Remote Control Auto Feed Auto Lube Fire Suppression Compressor for maintenance Many Spares included Caterpillar 320L Steel track undercarriage Caterpillar 755 horsepower diesel engine 12′ 10″ long x 60″ steel infeed conveyor (actual hopper length – 12′) (1) 20″ diameter feed wheel controlled via remote control 42″ diameter x 63″ wide cuttermill with 30 or 60 teeth 30′ long x 4′ wide height adjustable discharge with magnetic head pulley Bandit control panel with proportional feed (6 infeed speeds) Radio remote control with tether back-upShow more
