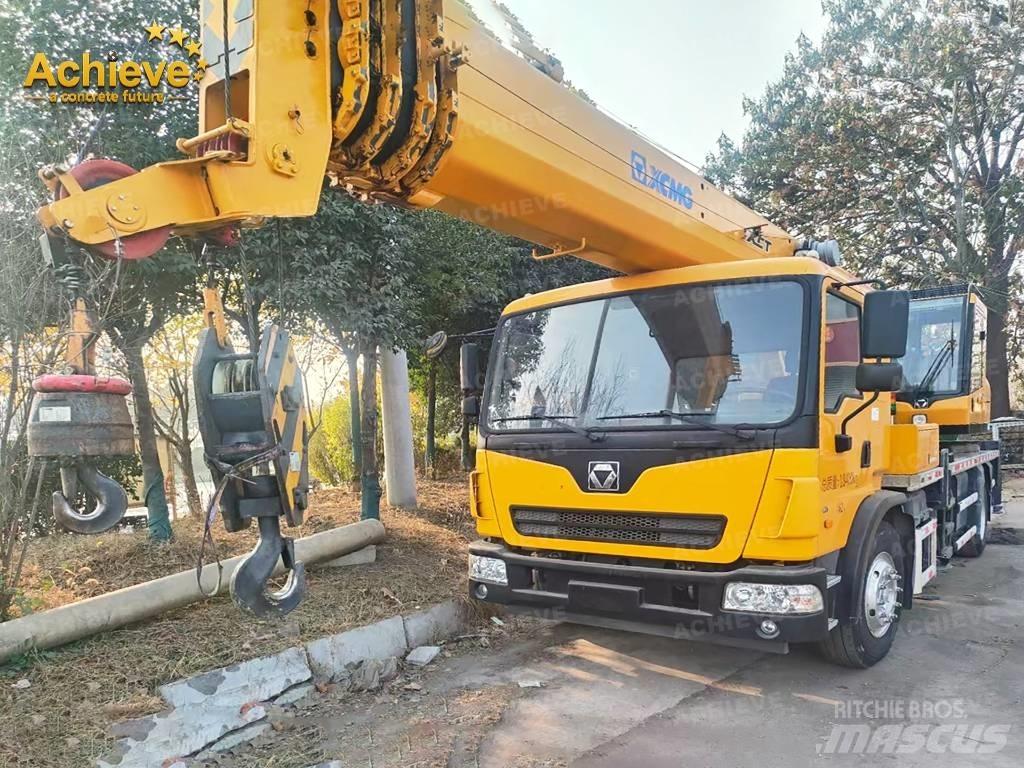

XCMG XCT12L5
Price excl. VAT
6
2
Favorite
Share
Save searchPrint
INFO
Product category / Group
Hoists, winches and material elevators
Brand / model
XCMG XCT12L5
Mnftr year
2022
Hour meter reading
1,248 h
Condition
Reconditioned,Demo
Country
China
General grade
1
2
3
4
5
Mascus ID
BA9F24BF
PRICING
Choose your currency
DETAILS
Maximum lift height
25 m
Maximum lift capacity
12,000 kg
Manufacturing / Serial number
XCT12L5
Gross Weight
16,000 kg
Emission level
Stage IIIA / Tier III
Original colour
yellow
Transport dimensions (LxWxH)
1090025003.55 m
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Other information/spec
Category
Item
Unit
XCT12L4
Dimension
Overall length
mm
10900
Overall width
mm
2500
Overall height
mm
3550
Weight
Total weight in travel
kg
16000
Travel
Max. travel speed
km/h
90
Min. turning diameter
m
18
Min. ground clearance
mm
250
Approach angle
°
21
Departure angle
°
13
Max. grade ability
%
41
Fuel consumption for 100km
L
25
Main performance
Max. rated total lifting capacity
t
12
Min. rated working radius
m
3
Turning radius at turntable tail
m
2.57
Max. lifting torque
kN.m
482.5
Base boom
m
9.5
Max.main boom
m
30.9
Max.main boom+jib
m
38.1
Turning radius at turntable tail
Counterweight
mm
2570
Auxiliary winch
mm
2910
Max. load moment
Base boom
t.m
48.25
Fully-extended boom
t.m
27.6
Outrigger span(fully-extended)
Longitudinal
m
4.57
Hoist height
Lateral
m
5.5
Base boom
m
9.5
Fully-extended boom
m
30.9
Boom length
Fully-extended boom + Jib
m
38.1
Base boom
m
9.45
Fully-extended boom
m
30.5
Fully-extended boom + Jib
m
30.5+7
