Sany STC1000T

Price excl. VAT

POA

Images5

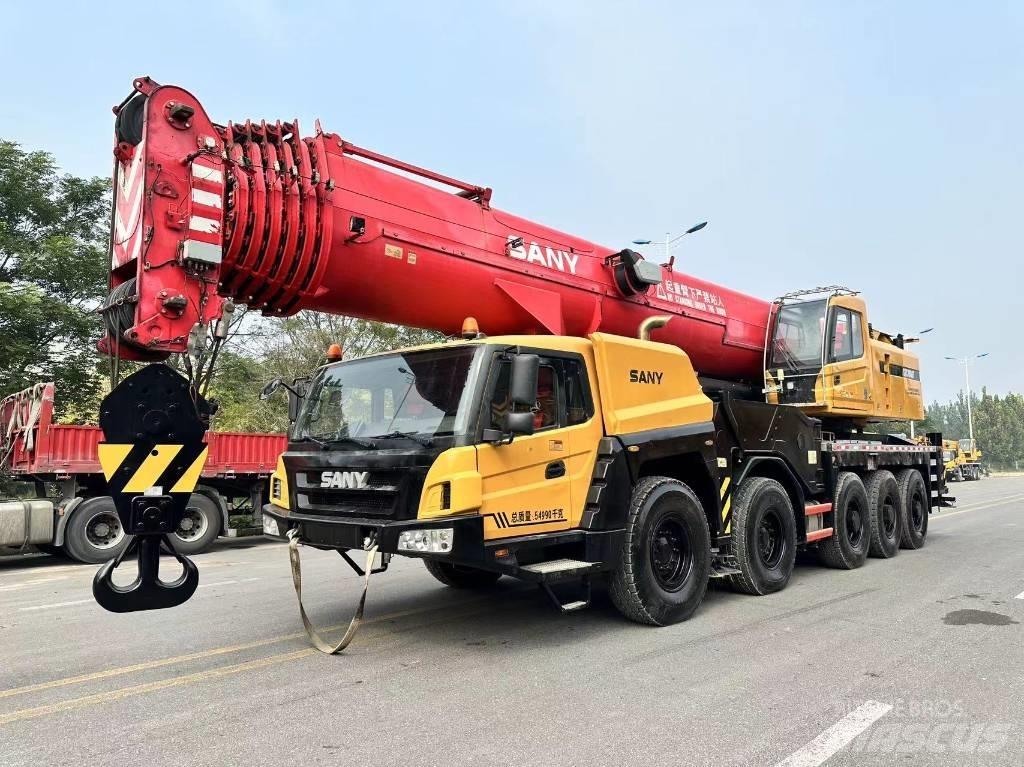

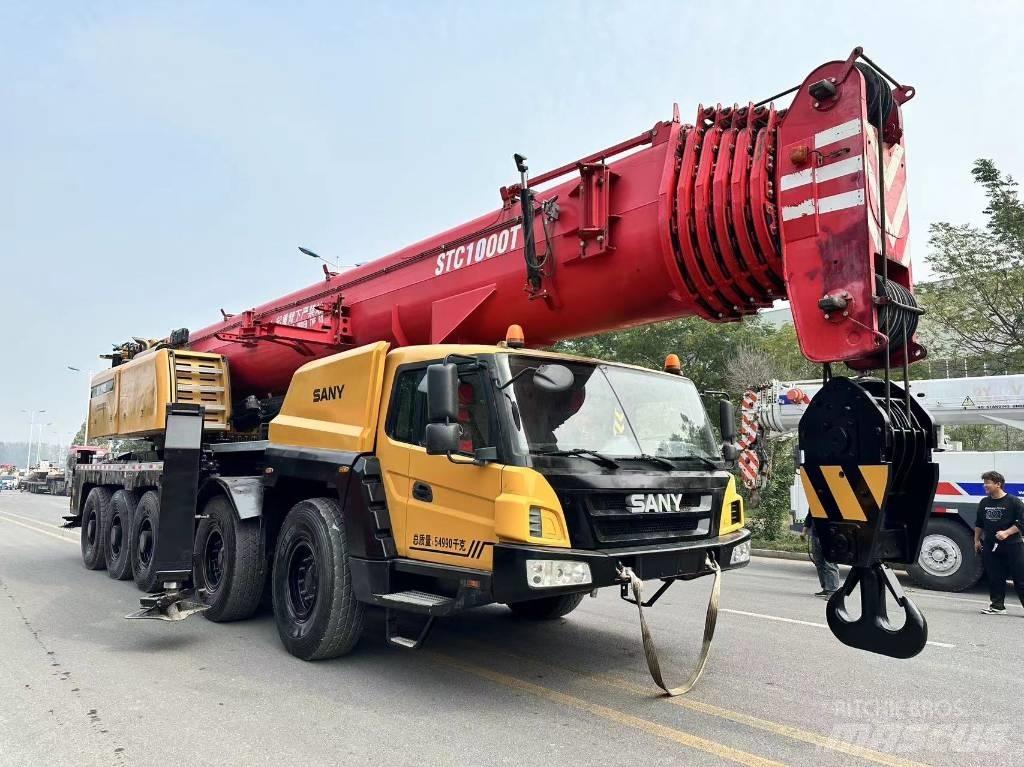

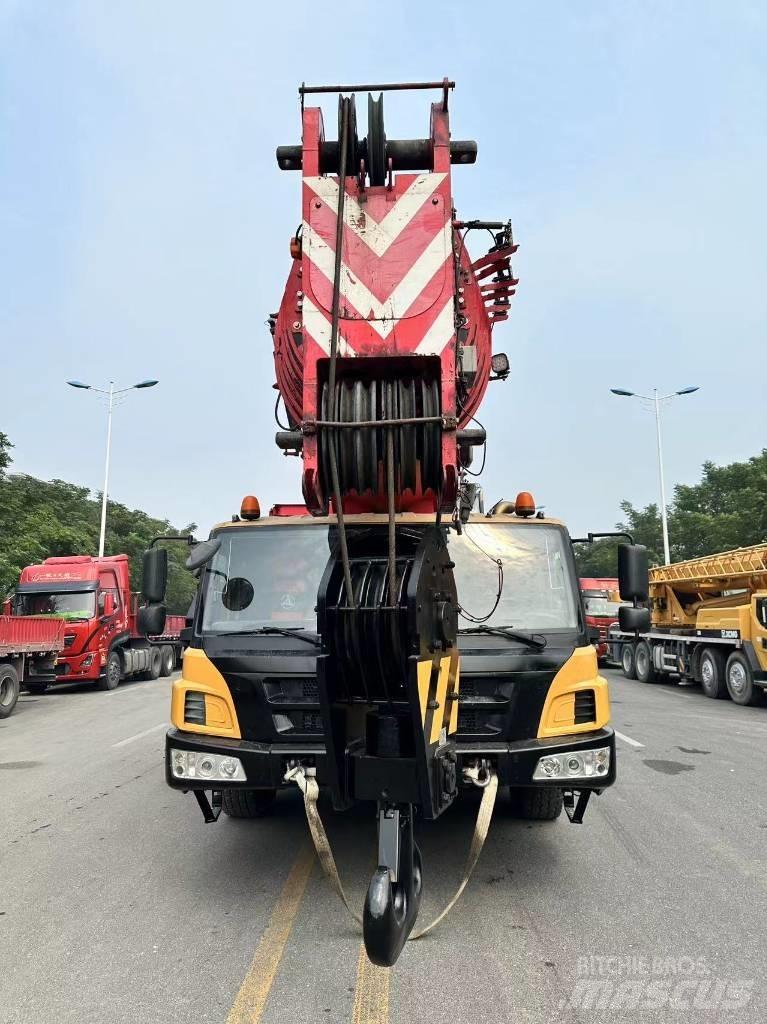

Sany STC1000T All terrain cranes
Sany STC1000T All terrain cranes
Sany STC1000T All terrain cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
All terrain cranes
Brand / model
Sany STC1000T
Mnftr year
2019
Hour meter reading
1,900 h
Country
China
General grade
1
2
3
4
5
Mascus ID
6CEBA277

DETAILS

Last inspection date
2025-04-24
Amount of previous owners
1
Full service history
Yes
Maximum lift capacity
100,000 kg
Max lifting capacity at end of jib
100,000 kg
Emission level
Stage V / Tier V
Crane type
Hydraulic jib
Engine manufacturer
Cummins
Carrier type
Wheeled
Front tyres remaining
98
Rear tyres remaining
98
Production country
China
Delivery terms
CFR, CIF, EXW
Other information/spec
SANY 100 Tons STC1000T TRUCK CRANE Brand: SANY Model: STC1000T Capacity: 100t Year: 2019 Price: 145000 USD FOB CHINA Perfectly conditons,excellent after-sale service, Contact for more favorable price! Contact: Alan Wang Mobile: 008618639069266 / 008618211689690 (Whatsapp/WeChat/Viber/Imo/Line/Facebook) 1, Boom: 7 sections / 12.32m-64.5m 2, Jib: 18.5m 3, Engine: Down Engine: Cummins ISZ480 51 353kw/1900rpm Up Engine: Cummins QSB6.7-C260 194kw/2200rpm Emission standard: National V 4, Transmission system:ETON Auto; 11 Speeds Forward gear; 3 Reverse gears 5, Crane Size: 14276*3000*4000mm Crane Weight: 54990kg 6, Counterweight: 40.2t Main configuration list of Sany STC1000T truck crane: 1, Hydraulic configuration Main oil pump : Rexroth (Made In Germany) 2, Winch motor : Kawasaki (Made In Japan) 3, Slewing motor : Sany Heavy Industry 4, Onboard configuration Slewing support : Sany Heavy Industry 5, Slewing reducer : Sany Heavy Industry 6, Winch reducer: Sany Heavy Industry 7, Gearbox: Eaton 8, Axle: Dajiang 9, Steering gear: Nantong Global 10, Tire: Taikeying/Qianjin Perfectly conditons,excellent after-sale service, Contact for more favorable price! 2.1 Superb performance The STC1000T truck crane has the strongest operating performance in the same tonnage industry, and the best driving performance in the same tonnage industry. It is a 100t truck crane with an absolute leading advantage. 2.2 Super long U-shaped main boom: 7-section main boom, using advanced single-cylinder pin telescopic technology, main boom length 12.3m ~ 64.5m, basic boom torque up to 4920kN.m, the longest main boom torque up to 2400kN.m, jib length 15.5m, optional 1 section 6m main boom extension section and 2 sections 6m jib extension sections, maximum lifting height 97.3m, farthest lifting range 72m, installation angles 0°, 15°, 30° 2.3 Compact, flexible, easy to transfer  Compact body design, vehicle length 14.276m, 5-axle chassis, 4-axle steering, turning diameter 19.6m, more flexible transfer, more suitable for factory, city and other narrow site construction. Equipped with 385 95R25 all-terrain tires, it has better off-road performance. 2.4 Heavy-duty high-strength frame The rectangular frame section is adopted to greatly improve the bending and torsion resistance of the frame; After more than 10,000 fatigue tests, the performance is more reliable. 2.5 Front swing outrigger (two-stage retractable) The transmission system is optimized, and the engine output torque is directly transmitted to the drive axle through the transmission shaft, which greatly improves the transmission efficiency. It can operate 360° and has strong front operation ability 2.6 Maneuverability: The electric proportional control technology and closed double-slewing system are adopted, and the control performance is more stable and reliable; The fixed-point pin retractable system is adopted, and the arm extension process is smoother and more reliable. 2.7 Safety All-round safety protection system, the main and auxiliary winches are equipped with three-circle protectors and height limiters to prevent over-release and over-winding of wire ropes, extreme angle protection, and outrigger pressure protection; Torque limiter: The highly intelligent torque limiter system is adopted to protect the hoisting operation in all directions to ensure accurate, safe and reliable operation;Show more

Anyang Hongtai Construction Machinery Co., Ltd

Anpu Road No.219 455000 Anyang City Henan 河南 China
