NPK B5500

Price excl. VAT

POA

Compnay LOGO
Images4
NPK B5500 Aggregate plants
NPK B5500 Aggregate plants
NPK B5500 Aggregate plants
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
Aggregate plants
Brand / model
NPK B5500
Mnftr year
2022
Condition
New/unused
Location
North Las Vegas, Nevada
Country
United States
Mascus ID
60AFF5AA

DETAILS

Production country
United States
Other information/spec

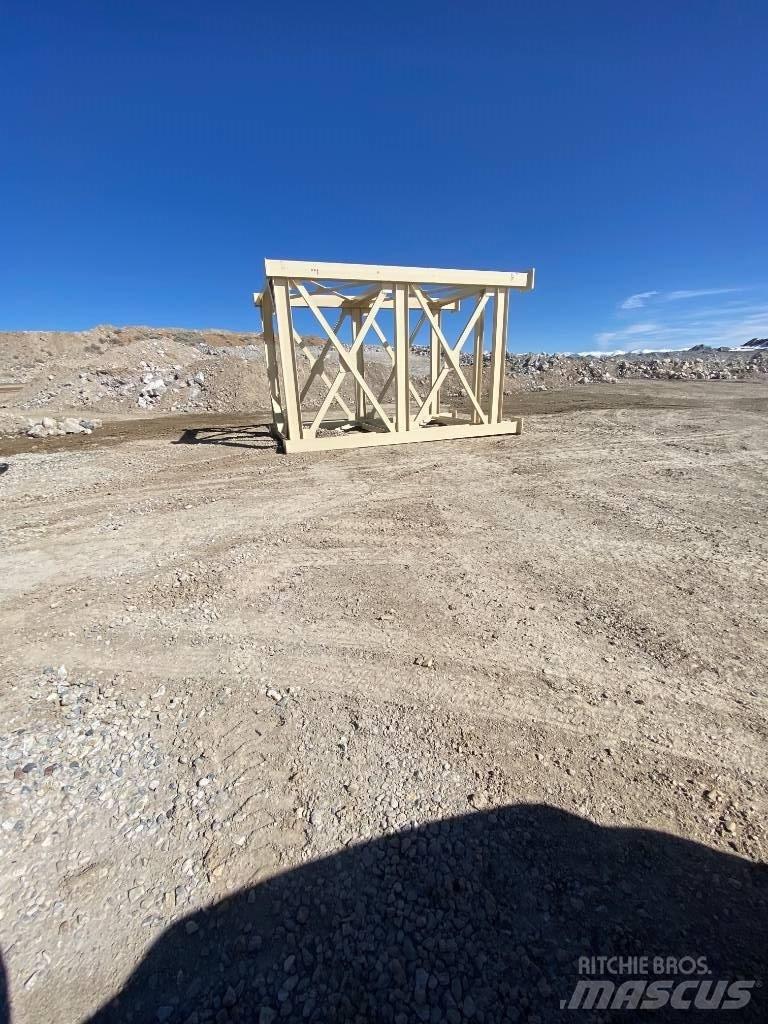

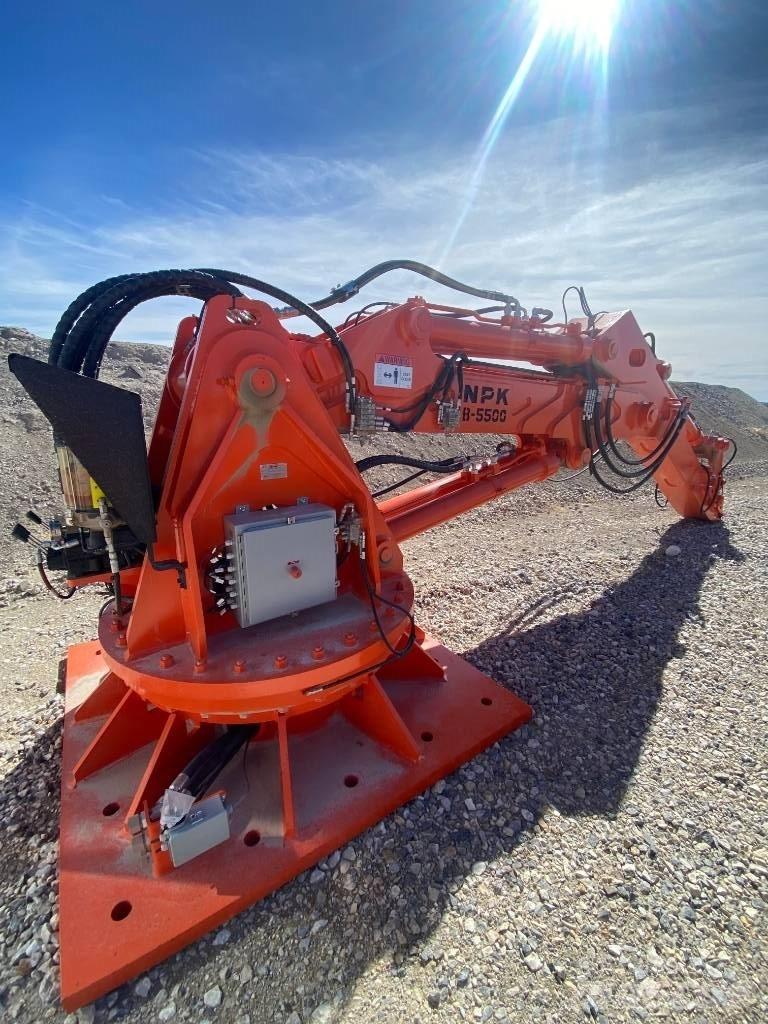

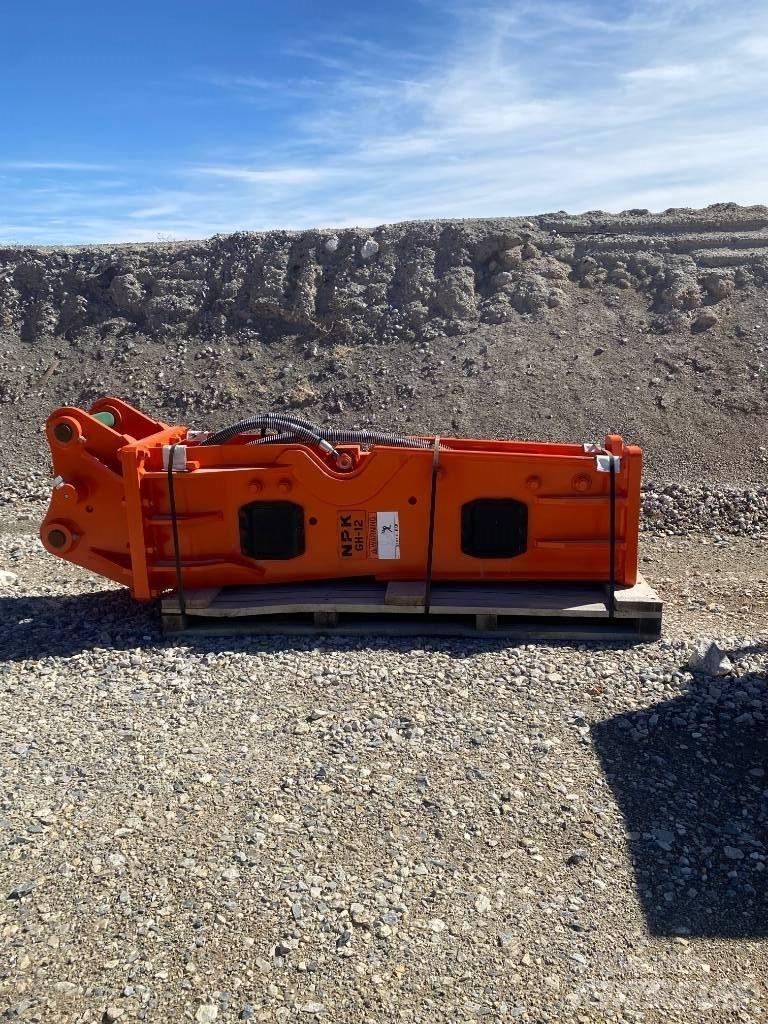

Complete System B5500 with GH-12 on ICM Hammer Stand 1.1 Model B5500 – Pedestal Unit • 21.9ft (6.7m) Heavy Duty Hydraulic Pedestal • 48” Slew ring bearing 280+ degree swing with adjustable stops • Heavy duty twin boom and twin stick cylinders • Lifting eyes on base and stick • Oversized hardened pins and bushings at every joint • Laminated reinforced steel pivot points • See “Option Below” for all pedestal options. 1.2 Model HP125 - Hydraulic Power Unit • 125HP electric motor, 480V, 3ph, 60Hz (if a different voltage or hertz is required, please let your dealer or NPK know as this may change the price and/or delivery) • Elevated Hydraulic reservoir 150-gallon tank with internal baffle and large clean out port • Load sensing and pressure compensated piston pump • Visual sight and temperature glass • Breather filler assembly • Suction strainer with oil shut off • Return filter w/dirty indicator • High pressure filter w/dirty indicator • Pressure gauge 0-5000 PSI • (Starter, heater and cooler not included in Item 1) if NPK Starter is purchased the power unit will be 100% self-contained with only one customer electrical connection required. • See “Options Below” for all power unit options. 1.3 Electric / Hydraulic Controls • Danfoss Plus+1 control system • Joystick control console w/ two (2) proportional joysticks, display screen, and key switch (screen pages may vary depending on options chose) • Junction box mounted on pedestal with wire harness • Solenoid driven multi-Valve (5 section) • 12Vdc power supply (110Vac/230Vac to 12Vdc) • 150ft control cord; if a longer cord is required cord length must be specified at time of order (price adder may apply). • All boxes and components meet or exceed IP65 NEMA 4   2.4 GH-12 Hammer • 5,500 ft- lbs. Impact Energy Class • Heavy duty hydraulic breaker • Hidden hammer hoses (hoses routed inside bracket) • Mounting kit (pins, hoses, retainer bolts) • Blunt tool (if different tool is required, please specify when ordering may change the price). ICM Stand Free Standing Hammer Stand with stairs and structure for Operators CabShow more
