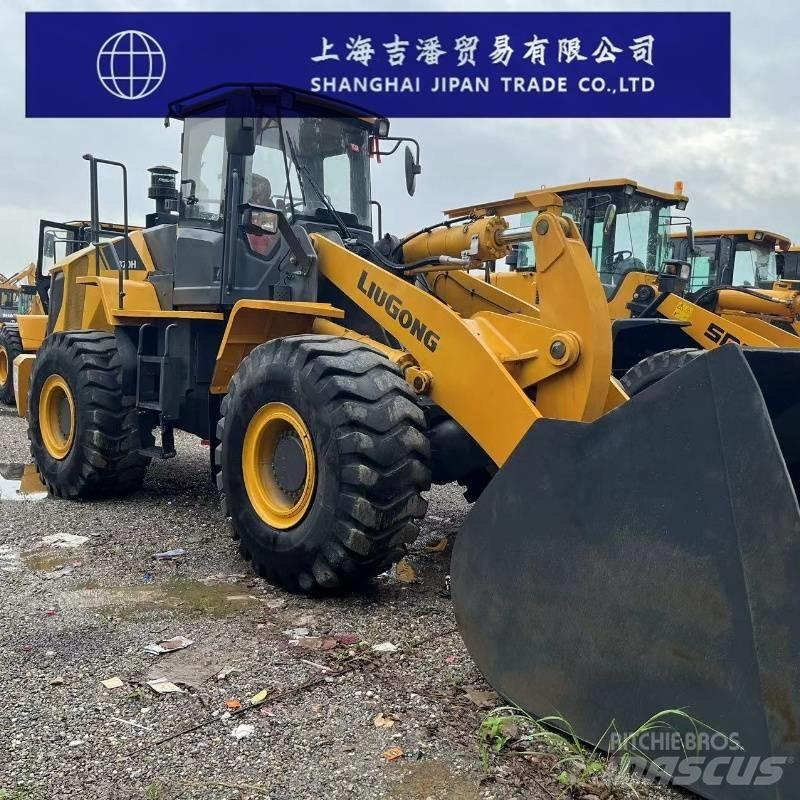

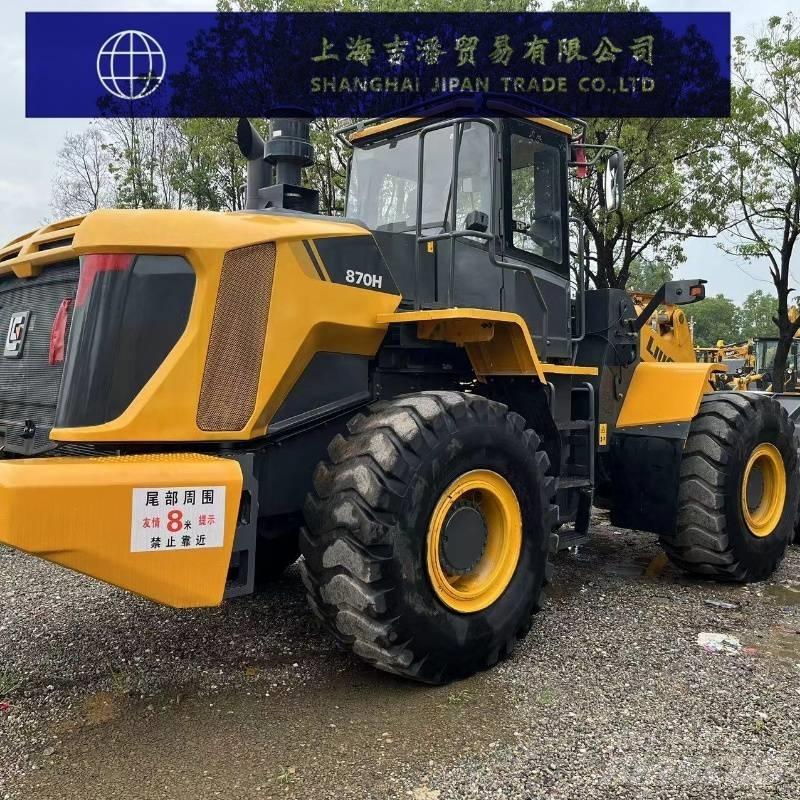

Liugong CLG 870 H

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic parameters Equipment model: CLG870H Model abbreviation: 870 Rated load capacity: 7000kg The overall operating weight of the machine is 21,500 kg Working condition application: General type Tonnage range: 5-8 tons Engine parameters Engine model: Guangxi Cummins QSL9.3 Type: Six-cylinder in-line, four-stroke turbocharged, intercooled Rated power/speed: 180kW/2200r/min Maximum torque/speed: 1187N·m/r/min Displacement: 9.3L Fuel consumption rate: The specific value varies depending on the working conditions Performance parameters Bucket capacity: 4.2 cubic meters Maximum digging force (lifting force) : 200kN Maximum traction force: 192kN Maximum climbing ability: 27° Unloading height: 3000mm Unloading distance: 1346mm Dimensional parameters Overall length: 8,773mm Overall width: 3220mm Overall height: 3467mm Wheelbase: 3450mm Track: 2280mm Minimum ground clearance: 460mm Oil capacity Fuel tank capacity: 330 liters Hydraulic system capacity: 280L Coolant capacity: 52 liters Engine oil capacity: 22 liters Other parameters Drive axle swing Angle: 12° Steering Angle: 38° Minimum turning radius (calculated from the center of the outer wheel) : 6300mm Working device action time: Lifting time 5.7 seconds; The unloading time is 1.3 seconds. The time for lowering the empty bucket is 3 seconds. The total time for the three items is 10 seconds
