Geotec ROTOMAX Li

Price excl. VAT

POA

Images11Videos1

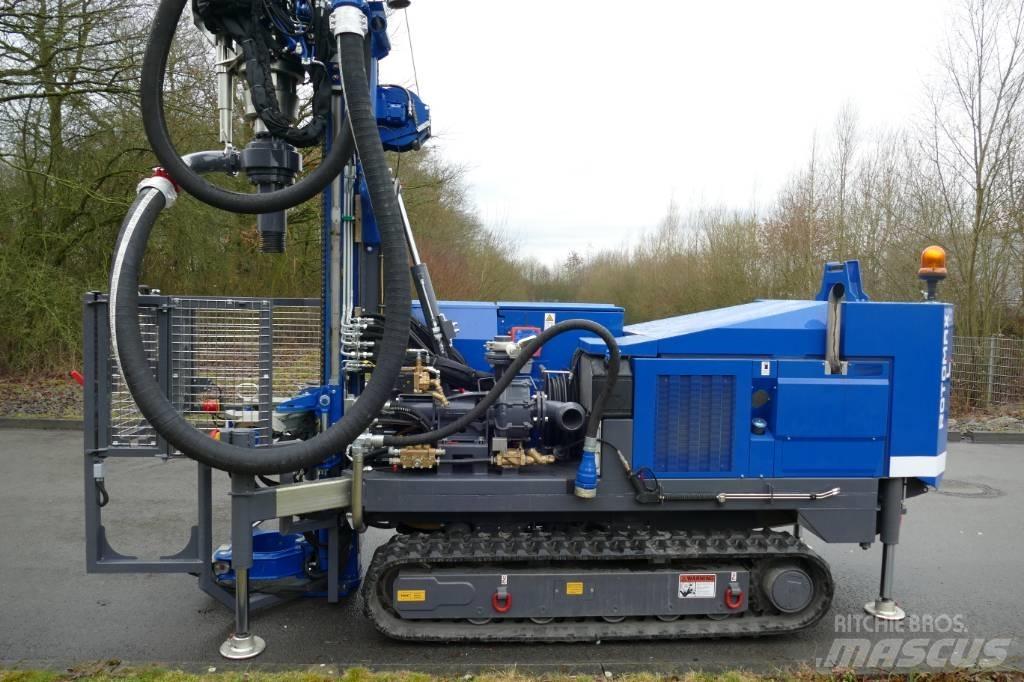

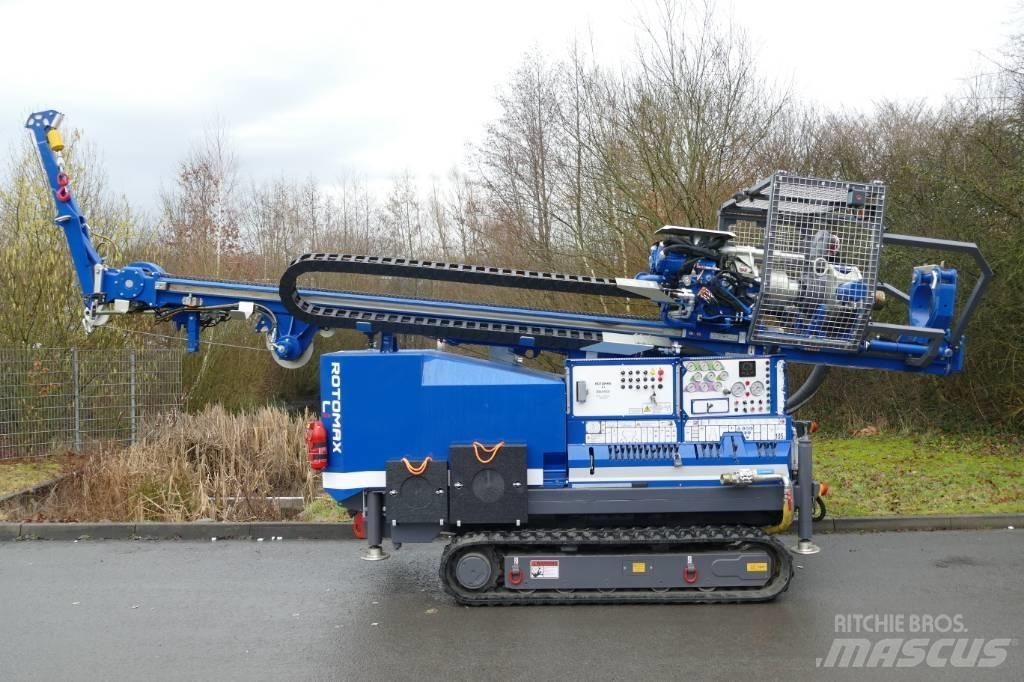

Geotec ROTOMAX Li Waterwell drill rigs
Geotec ROTOMAX Li Waterwell drill rigs
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
Waterwell drill rigs
Brand / model
Geotec ROTOMAX Li
Mnftr year
2022
Condition
New/unused
Location
Nordkirchen
Country
Germany
General grade
1
2
3
4
5
Mascus ID
B88F05AC

DETAILS

Last inspection date
2022
Full service history
Yes
Engine
136KM
Engine manufacturer
PERKINS
Emission level
Stage V / Tier V
Cooling system
Water
Feed mechanism
Cylinder
Strike hours
0
Percussion hours
0
Rod handler make
GEOTEC
Feed mechanism make
GEOTEC
Track make
GEOTEC
Carrier type
Tracked
Condition info/guarantee
1000 Hours / 1 Year
Transport weight
6,000 kg
Transport dimensions (LxWxH)
4000 x 1600 x 2400 mm
Front tyres remaining
100
Rear tyres remaining
100
Delivery terms
EXW
Other information/spec
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Show more

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Germany
