INFO

Product category / Group
Truck & Van mounted aerial platforms
Brand / model

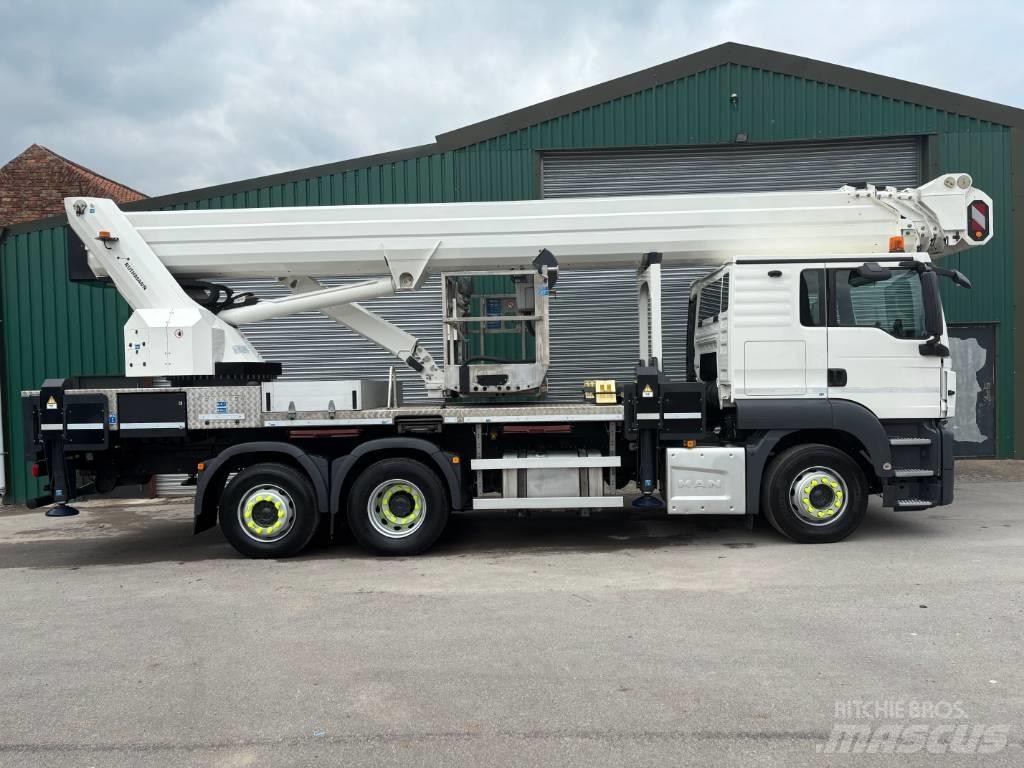

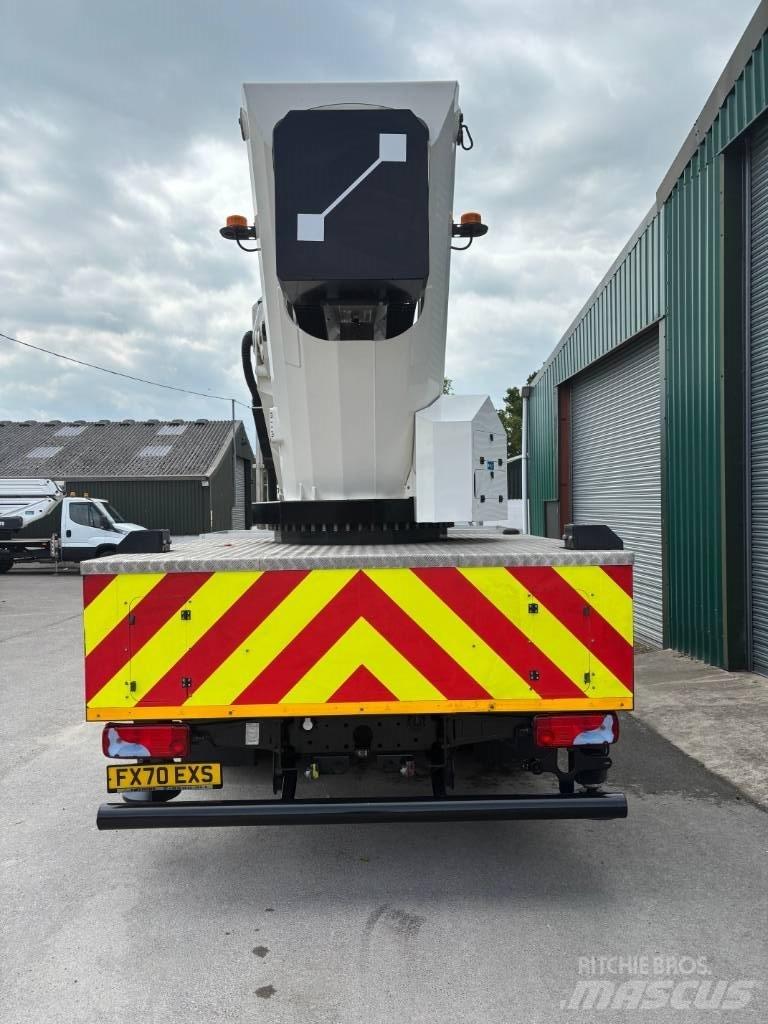

Ruthmann T510HF3A
Mnftr year
2020
Hour meter reading
2,844 h
Condition
Reconditioned
Country
United Kingdom
General grade
1
2
3
4
5
Mascus ID
540139FF

DETAILS

Working height
51 m
Power type
Diesel
Last inspection date
2025-05-15
Boom type
Straight
Amount of previous owners
1
Full service history
Yes
Max horizontal reach
33 m
Working width
8 m
Manufacturing / Serial number
31817
Emission level
Stage VI / Tier VI
Gross Weight
26,000 kg
Maximum lift capacity
600 kg
Registration number
FX70EXS
Maximum lift height
49 m
Max swing of arm in degrees
500
Max swing of platform in degrees
440
Engine manufacturer
MAN
Original colour
White
Transport dimensions (LxWxH)
10.3 x 2.2 x 3.7 mm
Undercarriage brand
MAN TGS 26.360 6X4-2
Tyre brand
Firestone
Front tyres remaining
100
Rear tyres remaining
100
Production country
Germany
Certificates
CE
Attachments
MAN TGS 26.360 Manual gear box Air conditioning Climate Control Radio Blue tooth Fridge Satellite navigation Painting White RAL 9010 (DVS) Direct Vision Standard Camera System Cruise Control Differential Lock
Other information/spec
Aluminium Side walls 1000x2480x303 mm Painting RAL 9010 Superstructure Remote Control 110 Volt power to working cage Lift Up System Lifting Bar 110 Volt Winch Foldable seat in the working cage 3 Position Height Selection Switch 2 LED marker lights in flat execution, orange, on the left and on the right side of the turret Anemometer on the working cage. 4 rotatable and swivelling LED working lights Installation of a high-pressure water hose Installation of a 5 x 2.5 mm² cable for max. 400 V 4 Polyester supporting-plates Rösler "Obserwando“ Snap-hooks / carabiners at the turret and along boom sections Additional Buttons for „cage rotation left / right Service hour counter for vehicle engine Mounting of a boundary bar at the joint upper-boomShow more
