Wacker Neuson SW21

Price excl. VAT

Images5

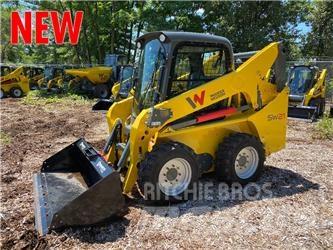

Wacker Neuson SW21 Skid steer loaders
Wacker Neuson SW21 Skid steer loaders
Wacker Neuson SW21 Skid steer loaders
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product category / Group
Skid steer loaders
Brand / model
Wacker Neuson SW21
Mnftr year
2019
Hour meter reading
3 h
Condition
New/unused
Location
Philadelphia, Pennsylvania
Country
United States
Mascus ID
E145A6A4

PRICING

Choose your currency

DETAILS

Manufacturing / Serial number
WNCS0503EPUM00731
Gross Weight
2,954 kg
Maximum lift capacity
953 kg
Body type
Fixed frame
Cabin type
Enclosed cab
Emission level
Stage IV / Tier IV final
Engine
Kohler KDI 2504 TCR
engine output
54.4 kW (74 hp)
Top speed
19.3 km/h
Original colour
Yellow
Carrier type
Wheeled
Front tyres remaining
100
Rear tyres remaining
100
Other information/spec
BASE MODEL W/ ADDED FACTORY INSTALLED OPTIONS: • AC04 - HYDRAULIC COUPLER • CB05 - CAB TYPE ENCLOSED - HEAT & AC • CP04 - SELECTABLE EH JOYSTICK CONTROLS • DS02 - 2-SPEED DRIVE 8-12MPH • FS01 - FAN VARIABLE SPEED COOLING • FT14 - ONE-WAY HYDRAULIC BUCKET LEVELING • FT17 - RIDE CONTROL • ST01 - SEAT MECHANICAL SUSPENSION • 1000365245 - DELUXE TELEMATICS SW21 Base Skid Steer Information: Operating Data: • Height Top Of ROPS: 81.5" • Overall length w/ bucket: 134.9" • Overall length w/o bucket: 106.6" • Operating weight: 6,512 lb. • Height Hinge Pin Max: 124" • Rated Operating Capacity 50%: 2,100 lb. • Dump reach: 34.1" • Dump height max. at max height: 96.5" • Angle of departure: 24° • Tipping angle (Bucket dump) w/bucket at max height: 42° • Ground clearance: 7.6" • Breakout force max. - Bucket: 5,300 lbf • Breakout force max. - Boom: 5,000 lbf • Width: 65.9" Engine / Motor: • Engine / Motor manufacturer: Kohler • Engine / Motor: KDI 2504 TCR • Engine performance: 74 hp • Fuel tank capacity: 32.8 gal. • Hydraulic System: • Auxiliary Hydraulics - Standard Flow: 20 gpm • Auxiliary Hydraulics - High Flow: 30 gpm • Hydraulic oil tank: 2.9 gal. Power Transmission: • Travel speed: 8 mph (low), 12 mph (high) • Standard tires: 10" x 16.5" Standard Components: • Vertical Lift Arm • 74.3 HP Kohler Tier IV Final diesel engine with maintenance-free after treatment • ROP’s / FOP’s Level 1 Canopy with Side Screens • Mechanical Hand-Foot Controls • 10" x 16.5" All-Terrain Tires • 20.1 gal./min. Auxiliary flow • 2" Seat Belt • 3" Single Color Display • 2 Front single beam working lights • 2 Rear working lightsShow more
