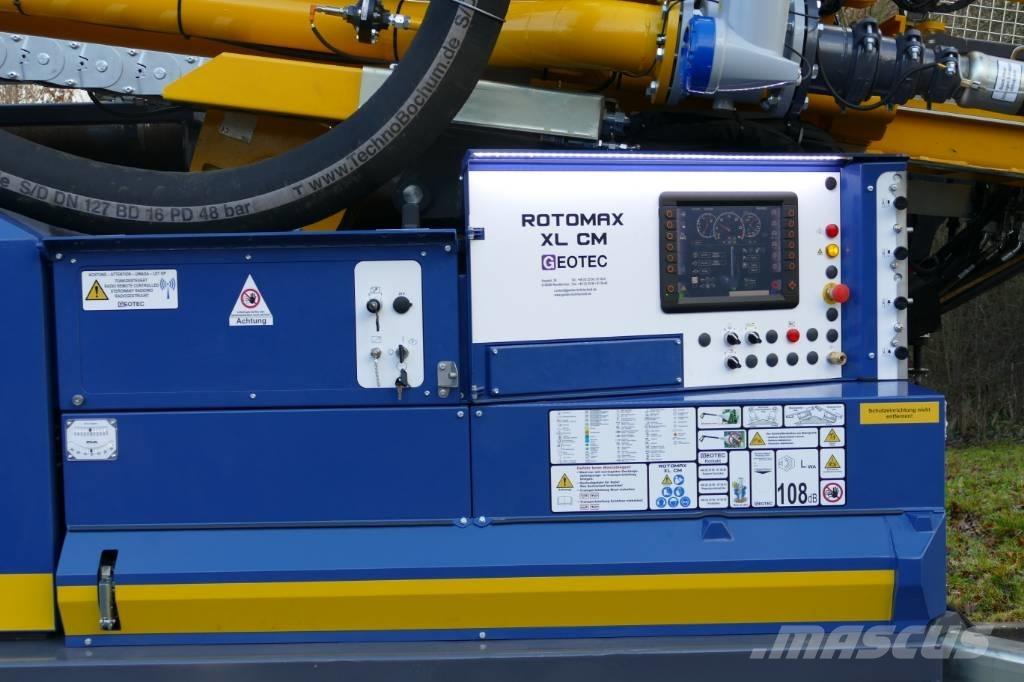

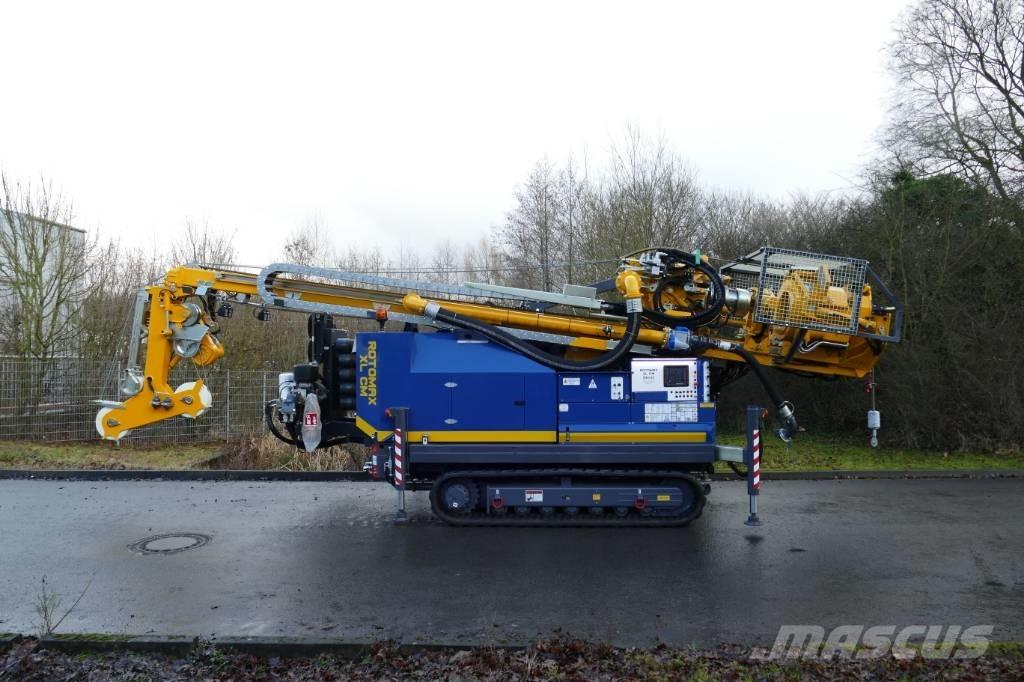

Geotec ROTOMAX XL-CM

Price excl. VAT

POA

FavoriteFavorite
shareShare
Save searchSave search
report adReport suspicious display

INFO

Product category / Group
Light drills
Brand / model
Geotec ROTOMAX XL-CM
Mnftr year
2022
Extra options
New/unused
Location
Nordkirchen
Country
Germany
Mascus ID
A7FF2A9E

DETAILS

Full service history
Yes
Engine
140kW
Engine Manufacturer
PERKINS
Emission level
Stage V / Tier V
Strike hours
0
Percussion hours
0
Hole diameter
"76-115 mm 3""-4 1/2"""
Rod/pipe diameter
"102 mm 4"""
Condition Info/Guarantee
1000
Transport weight
16,000 kg
Front tyres remaining
100
Rear tyres remaining
100
Delivery terms
EXW
Other information/spec
Manufacturer of GEOTEC vertical drilling rigs. Each drilling rig that leaves the factory is configured for the customer. We also offer larger models. We help in obtaining leasing and financing. Chassis: Fixed chassis with a width of approx. 2,450 mm (depending on the equipment of the machine). Tracks: Track undercarriage with rubber tracks, approx. 450 mm wide. Height transport: 3,100 mm Weight: 16,000 - 19,500 kg Cargo. Lashing rings for securing the cargo. Supports: 4 hydraulic supports Drive: 4-cylinder turbo diesel engine 140 kW (190 HP) with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for hydraulic circuit and AdBlue K15 mast Sicla ski lift return: max. 15,000 kg Stroke: 5200 mm between deflecting rollers Clamping head Ø178 Rotomax XL clamping head ROTOMAX XL jaw system The system consists of a tilt and pressure clamp Ø419 mm, and a lower clamp Ø419 mm Technical data of the tilt-pressure clamp Clamp diameter Ø78 mm - Ø250mm 30 ° rotation Turning force 35kN 240kN pull Stroke: 650 mm We are a producer, please contact us. Tel .: +49 162 279 618 5Show more

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Germany
