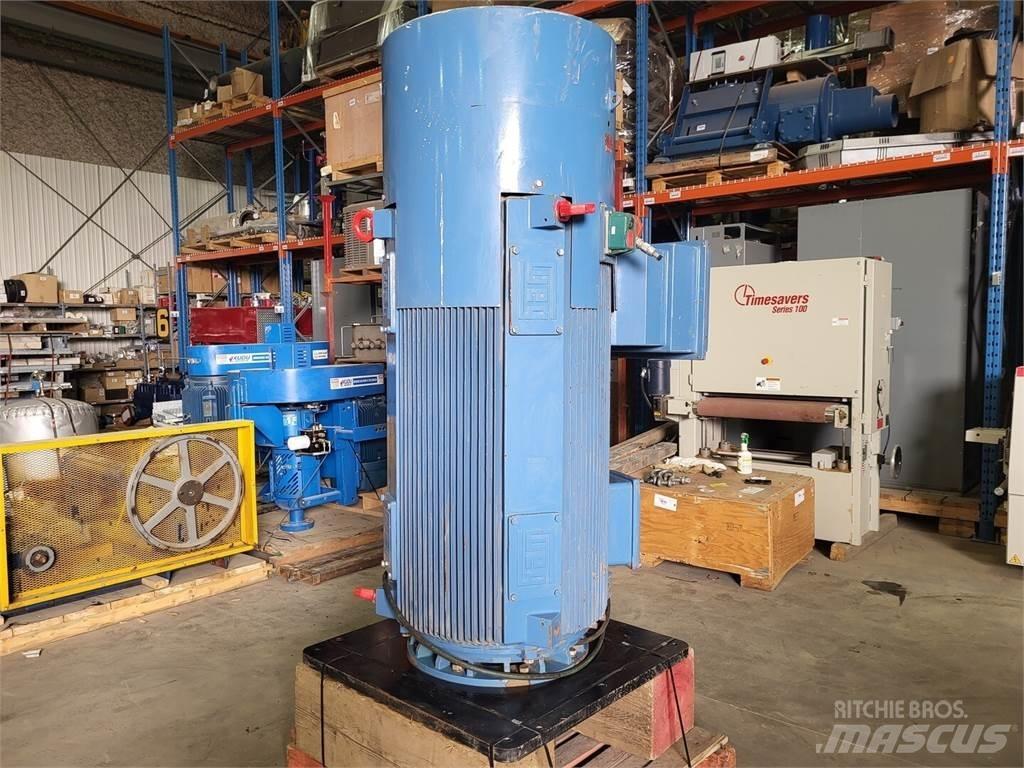

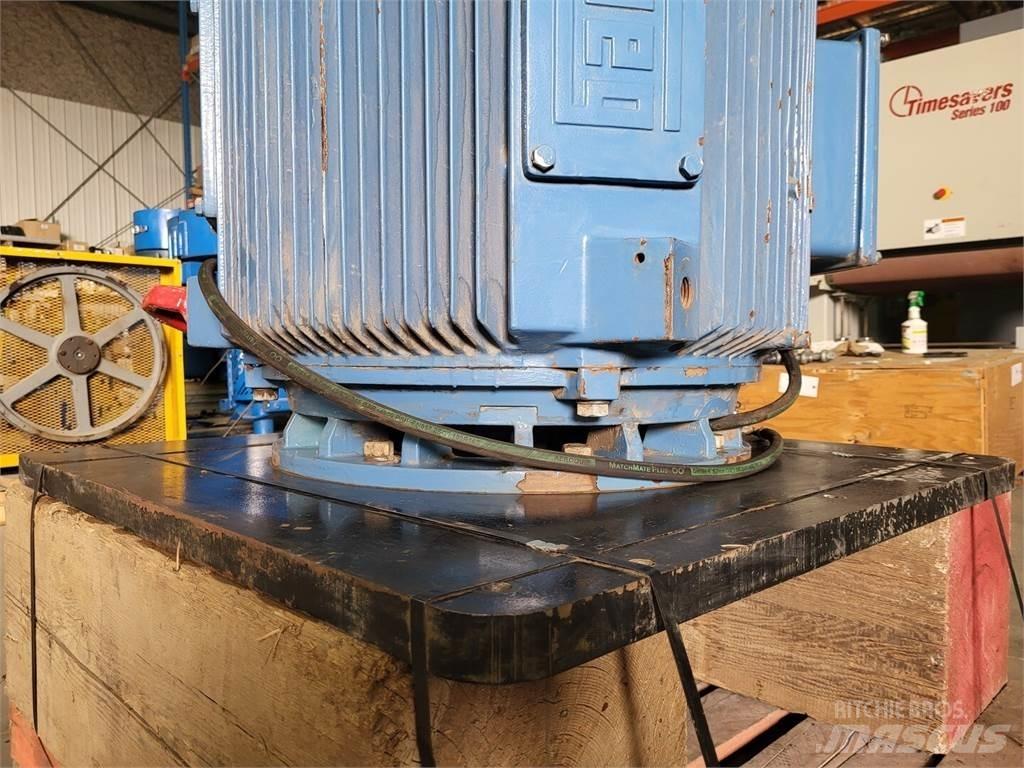

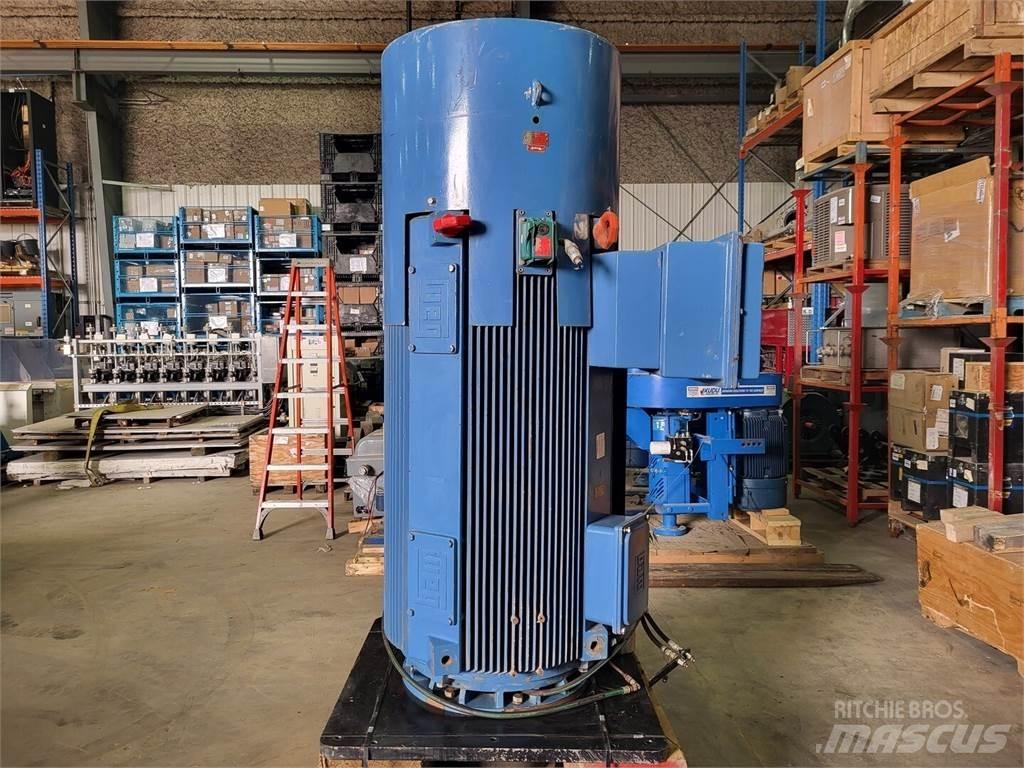

WEG HGF 5812

800 hp, 4160 volts, 1787 rpm, Electric Motor HGF 5812 Title: 800 hp, 4160 volts, 1787 rpm, Electric Motor HGF 5812 SKU: 107657 Model: HGF 5812 Condition: Used GeneralCurrent Type:AC Horsepower:800hp Voltage:4160volts Phase:3-phase RPM:1787rpm Frame:5812 Made In: BRAZIL Dimensions: 80.00 (H) x 39.00 (W) x 39.00 (L) inches Power Rating: 800 HP Speed: 1787 RPM Voltage: 4160 V Current: 97 A Frequency: 60 Hz Service Factor: 1.15 Duty Cycle: S1 (Continuous) Insulation Class: F Enclosure Type: TEFC (Totally Enclosed Fan Cooled) Cooling Method: IC411 Ingress Protection Rating: IP55 Ambient Temperature Rating: 40°C Temperature Rise: 80°C Power Factor: 0.88 Altitude Rating: 3300 ft Weight: 6687 lbs Stator Voltage: 4160 V Connection Code - Stator Windings: 9200 Connection Code - Rotor: 9410 Connection Code - Space Heaters: 9024 Temperature Sensors in Windings: 9024 Temperature Sensors in Bearings: 9034, 9303, 7257
