INFO

Product category / Group
Crawler excavators
Brand / model

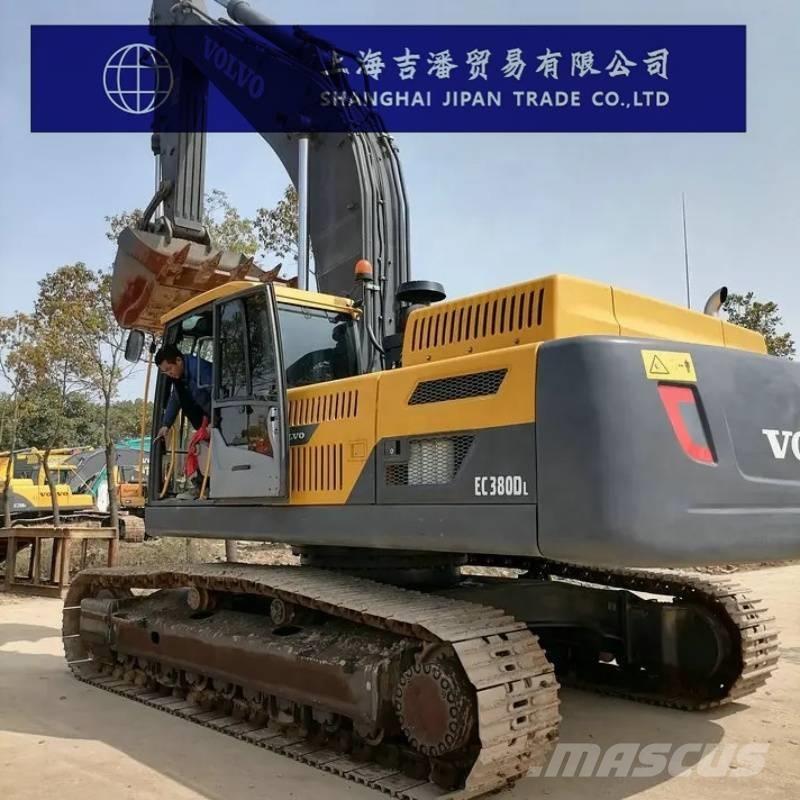

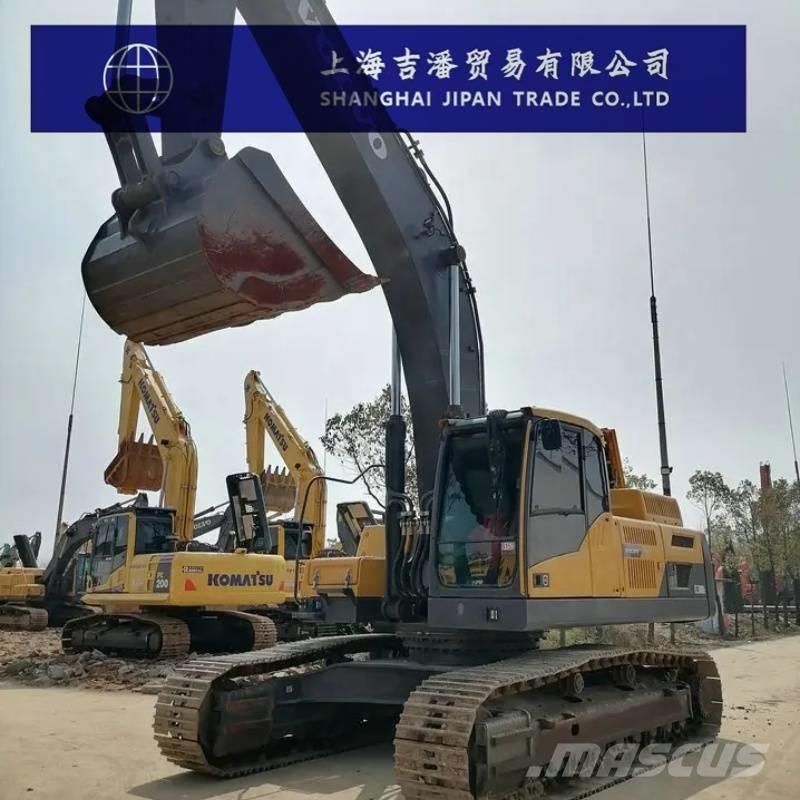

Volvo EC 380
Mnftr year
2024
Hour meter reading
980 h
Condition
Damaged
Country
China
General grade
1
2
3
4
5
Mascus ID
B4A5CC8A

PRICING

Choose your currency

DETAILS

Internal stock no.
1
Power type
Diesel
Manufacturing / Serial number
1
Amount of previous owners
1
Last inspection date
2025-08-18
Undercarriage condition
good condition
Engine
Original
Gross Weight
39,845 kg
engine output
245 kW (333 hp)
Engine manufacturer
Volvo
Registration number
1
Emission level
Stage V / Tier V
Bucket capacity
1.90 m3
Track width
600 mm
Top speed
5.10 km/h
Transport dimensions (LxWxH)
11220 x 3340 x 3360 mm
Original colour
Yellow
Dipper / stick length
3,200 mm
Condition info/guarantee
1 year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Safety line rupture valve - boom/hoist
Safety line rupture valve - dipper/stick
Air conditioning
Engine pre-filter
Skeleton bucket
Rotating beacon
Extra equipment
Joystick control
Standard digging bucket
Other information/spec
沃尔沃EC380荣耀版挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)38 整机工作重量(kg)39845 铲斗容量(m³)1.9 动臂长度(mm)6450 斗杆长度(mm)3200 性能 回转速度(rpm)10.2 回转扭矩(Nm)130.5 行走速度(km/h)5.1/3.3 铲斗挖掘力(kN)243 斗杆挖掘力(kN)181 最大牵引力(kN)276.5 动力系统 发动机型号VOLOV D13F 额定功率(kw/rpm)245/1800 最大扭矩(N.m)1720/1350 液压系统 主泵最大流量(l/min)2*317 工作液压油路(Mpa)32.4 行走液压回路(Mpa)35.3 回转液压回路(Mpa )27.9 油类容量 燃油箱(L)620 发动机油更换量(L)55 冷却液(L )60 主体尺寸 运输总长度(mm)11220 运输总宽度(mm)3340 运输总高度(mm)3360 驾驶室全高(mm)3220 上车宽度(mm)2990 履带接地长度(mm)4240 履带总长度(mm)5180 履带板宽度(mm)600 履带轨距(mm)2740 最小离地间隙(mm )500 配重离地间隙(mm)1150 后端回转半径(mm )3600 作业范围 最大挖掘半径(mm)11220 最大挖掘深度(mm)7590

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
