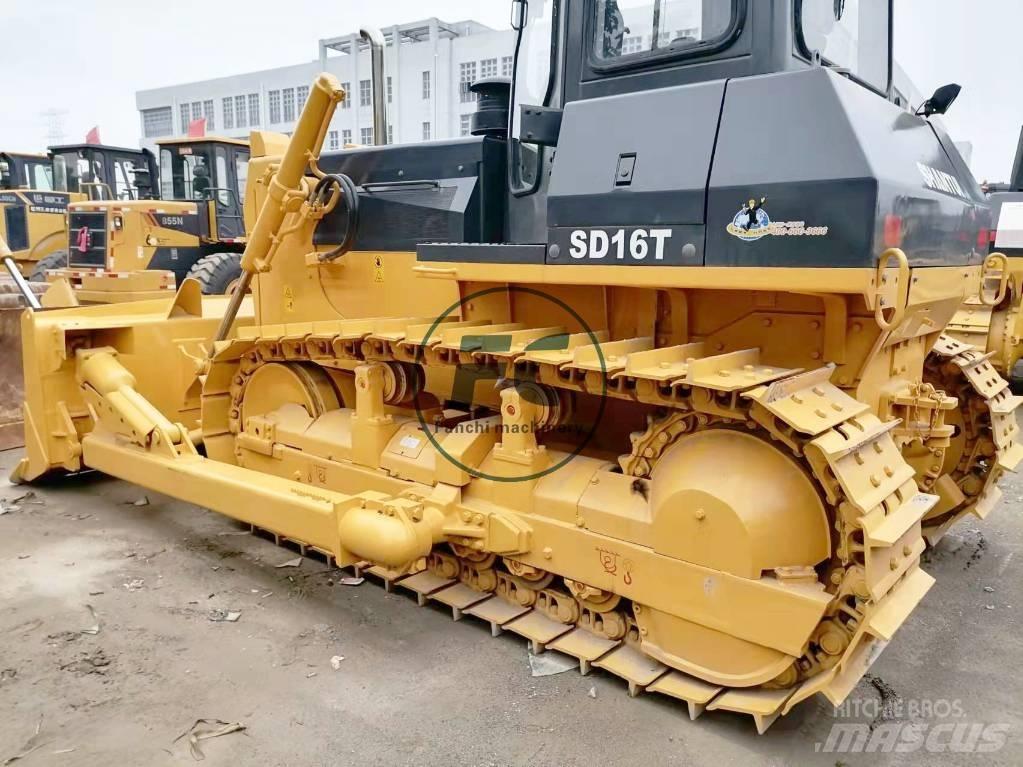

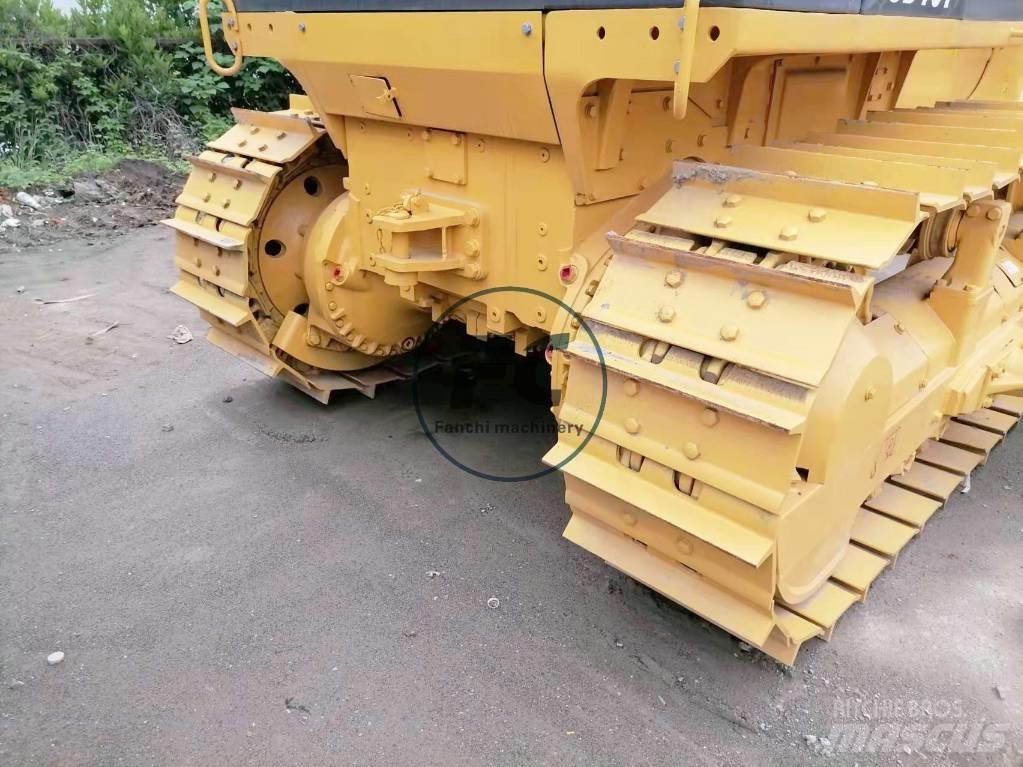

Shantui SD 16T

Name: Shantui SD 16T
Brand: Shantui
SKU: A602A8DA
Price: 235500 CNY
Availability: InStock

Price excl. VAT

Favorite

Save search

INFO

Product category / Group

Crawler dozers

Brand / model

Shantui SD 16T

Mnftr year

2024

Hour meter reading

314 h

Country

China

General grade

Mascus ID

A602A8DA

PRICING

Choose your currency

DETAILS

Power type

Diesel

Amount of previous owners

Gross Weight

17,000 kg

Undercarriage

Tracked

Cabin type

Enclosed cab

engine output

131 kW (178 hp)

Transport dimensions (LxWxH)

5.140×3.455×3.032 m

Original colour

YELLOW

Production country

China

Equipped for

propertynames.pp_equippedfor_2100011

Delivery terms

FOB, EXW

Certificates

EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME

Accessories

Additional hydraulics

Engine heater

Other information/spec

The Shantui SD16T is a 160-horsepower mechanical drive bulldozer engineered for versatility and efficiency across various earthmoving and construction applications. Building upon the foundation of the SD16 series, the SD16T offers enhanced features tailored to meet diverse operational needs. Key Features: 1. Engine & Performance Engine Model: Weichai WP10 Henan Harvest Machinery & Truck Co., Ltd +2 product.global-ce.com +2 machplaza.com +2 Rated Power: 131 kW (approximately 175 hp) @ 1,850 rpm Fuel Efficiency: Designed for optimal fuel consumption, balancing power output with economical operation. 2. Operating Weight & Dimensions Operating Weight: Approximately 17,000 kg (37,478 lbs) Dimensions (L × W × H): 5,140 mm × 3,455 mm × 3,032 mm Ground Pressure: Approximately 58 kPa, suitable for various terrains. machplaza.com +1 product.global-ce.com +1 3. Transmission & Undercarriage Transmission Type: Planetary gear with multi-disc clutch, hydraulically connected, featuring forced lubrication. shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Speeds: Forward: 2.67 km/h to 11.13 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Reverse: 3.48 km/h to 9.92 km/h product.global-ce.com +1 shantuibj.en.made-in-china.com +1 Track System: Track Gauge: 1,880 mm Shoe Width: 510 mm (options for 560 mm and 610 mm) Ground Contact Length: 2,430 mm 4. Blade & Ripper Specifications Blade Type: Straight tilt blade Blade Capacity: Approximately 3.8 m³ lectura-specs.com +2 shantuibj.en.made-in-china.com +2 Alibaba +2 Blade Dimensions: Width: 3,388 mm; Height: 960 mm shantuibj.en.made-in-china.com +1 lectura-specs.com +1 Maximum Digging Depth: 540 mm lectura-specs.com +2 工业目录 +2 product.global-ce.com +2 Ripper Type: Optional three-shank ripper shantuibj.en.made-in-china.com +1 machinery-trucks.com +1 Maximum Ripping Depth: 570 mm 5. Operator Comfort & Controls Cabin: Ergonomically designed for operator comfort, featuring intuitive controls and ample visibility. Steering & Braking: Equipped with wet multiple disc clutches and hydraulically actuated brakes for precise maneuvering. machinery-trucks.com +1 shantuibj.en.made-in-china.com +1 6. Durability & Maintenance Robust Construction: Built with high-quality materials to withstand rigorous working conditions. Maintenance Access: Designed for ease of serviceability, reducing downtime and operational costs. Applications ✔ Earthmoving: Efficiently handles tasks such as grading, leveling, and soil redistribution.✔ Construction: Ideal for site preparation, road building, and infrastructure projects.✔ Mining & Quarrying: Capable of managing overburden removal and material transportation.✔ Agriculture: Useful for land clearing, terracing, and other large-scale farming operations. Summary The Shantui SD16T bulldozer combines power, precision, and durability, making it a reliable choice for a wide range of construction and earthmoving projects. Its mechanical drive system, coupled with user-friendly controls and robust build, ensures high productivity and longevity in various working environments.Show more
