Product category / Group
Construction - Others
Brand / model
MVD C270-3700
Condition
Used
Location
Langley, British Columbia
Country
Canada
Mascus ID
5A3BEA11

PRICING

Choose your currency

DETAILS

Internal stock no.
29793
Other information/spec

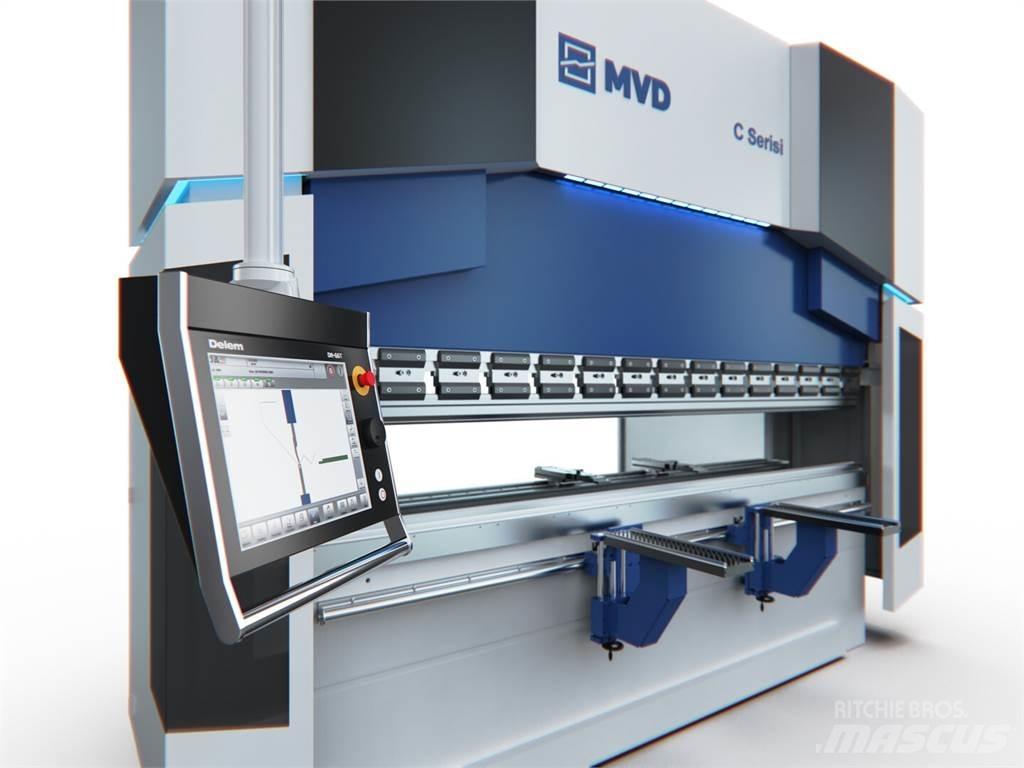

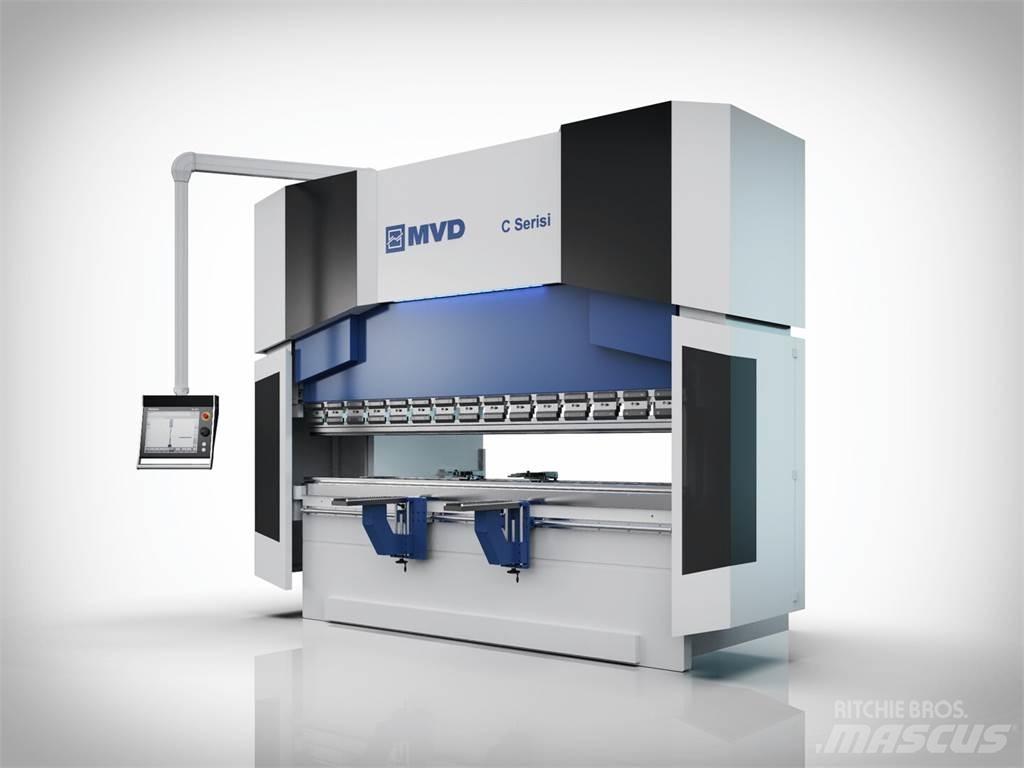

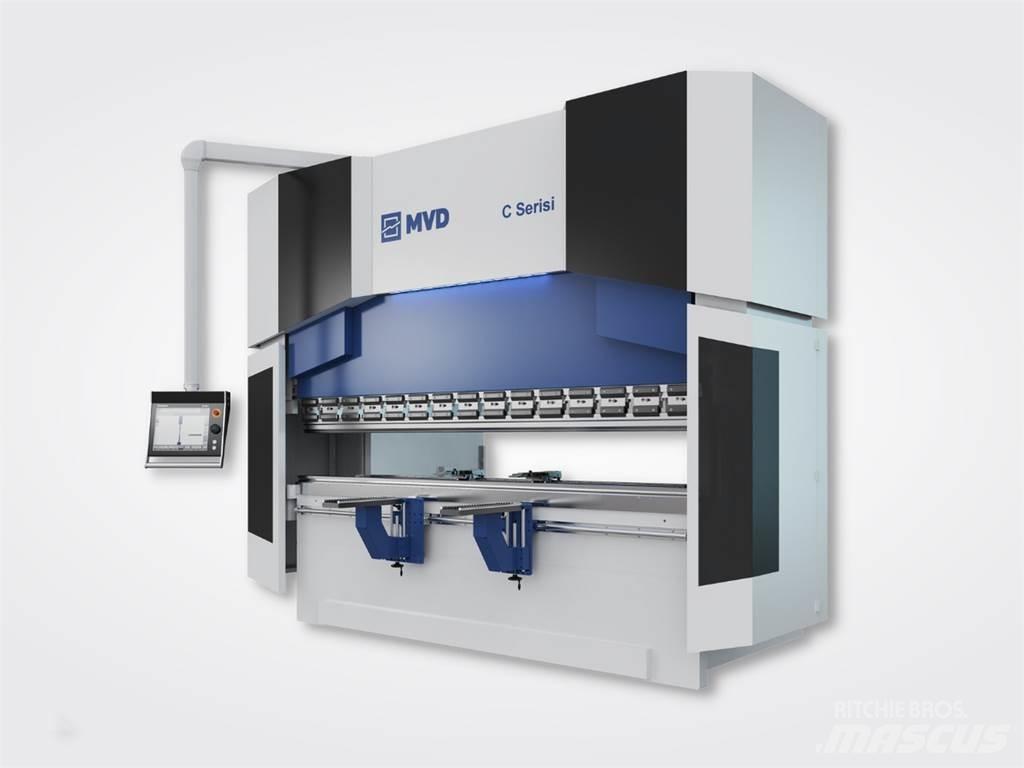

270 ton iBend Hydraulic Press Brake C-Series C270-3700 Title: 270 ton iBend Hydraulic Press Brake C-Series C270-3700 SKU: 29793 Model: C270-3700 Condition: New GeneralBed Length:3700 mm / 144.67 in. Tons:270ton Brake Type:Hydraulic ElectricalVoltage:600volts Phase:3-phase Dimensions: 119.69 (H) x 104.33 (W) x 228.35 (L) inches Throat: 410 mm Daylight: 515 mm Stroke: 310 mm Distance between columns: 3200 mm Table Height: 955 mm Standard Features - Y1, Y2, X, R (4-Axes CNC) - MVD X+R Axes Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm - 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide - American&European Style Quick clamp Promecam top tool holder E20 - 2x pieces Stronger sliding front support arms with hand-wheel C-Type vertical adjustment - MVD special narrow bottom plate (European Type) - Standard Punch ES 1281 (H: 104, 85°, R: 0.8) - Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60) - 2019 C-Series full cabin cover with aluminium controller arm - Double Pedal (Press Up&Down) - P3 - Stronger Type 2 manual crowning with WILA (Holland) wedges, adjustable by handle and gauge - Encoder - Linear Scales: GIVI - LED illumination on RAM - Electric components: Schneider 575V/ 60 Hz - Hydraulic: Hoerbiger (HAWE) Blok - Electric cabin: VDE - Pump: Eckerle - Driver: Mitsubishi / LS Electric - CNC Controlled Type#1 Crowning (by Wila wedges and FramoMorat motor) Additional - Delem DA-66T, 17" Touch Screen, 2D Graphical, (3-8 Axes) with Profile-T-Lite - T2D Offline programming software - 250mm Large bottom table for multi Vee die+IW: 70mm EU Die holder - MSD front safety lasers + rear light beamsShow more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
