Product category / Group
Construction - Others
Brand / model
MAGGI Big 800
Mnftr year
2006
Condition
Used
Location
Langley, British Columbia
Country
Canada
Mascus ID
3F93C831

PRICING

Choose your currency

DETAILS

Internal stock no.
129502
Other information/spec

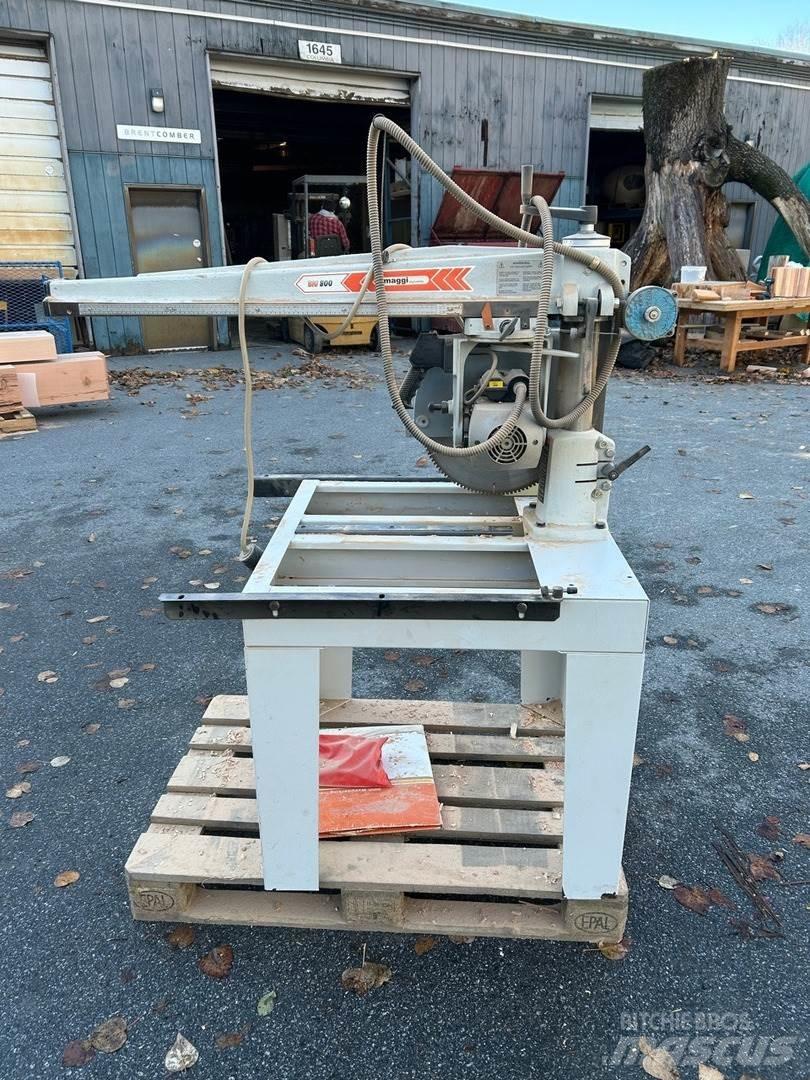

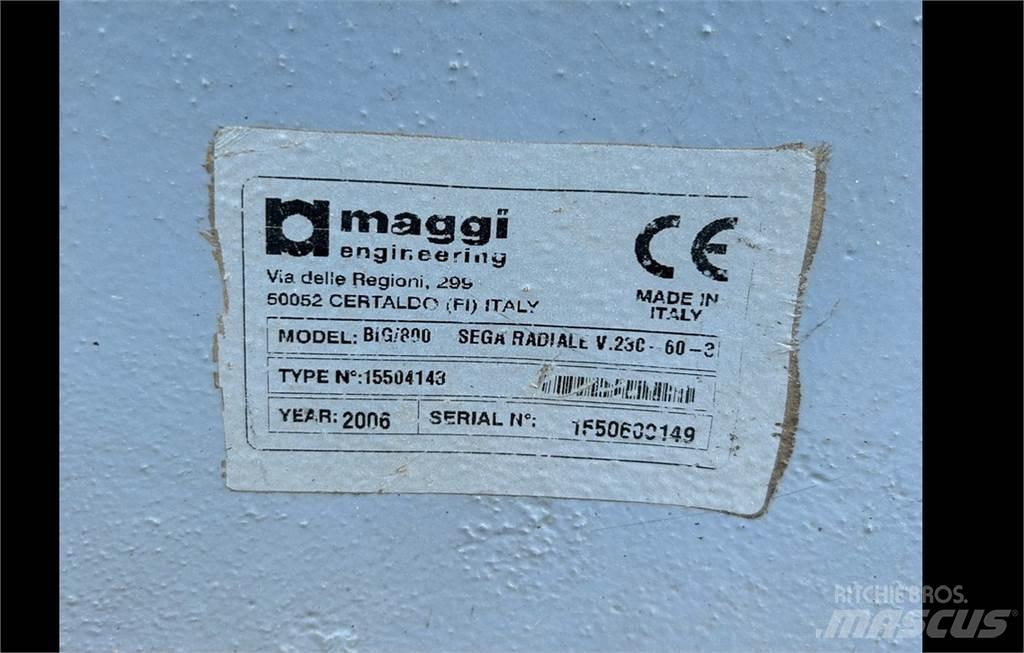

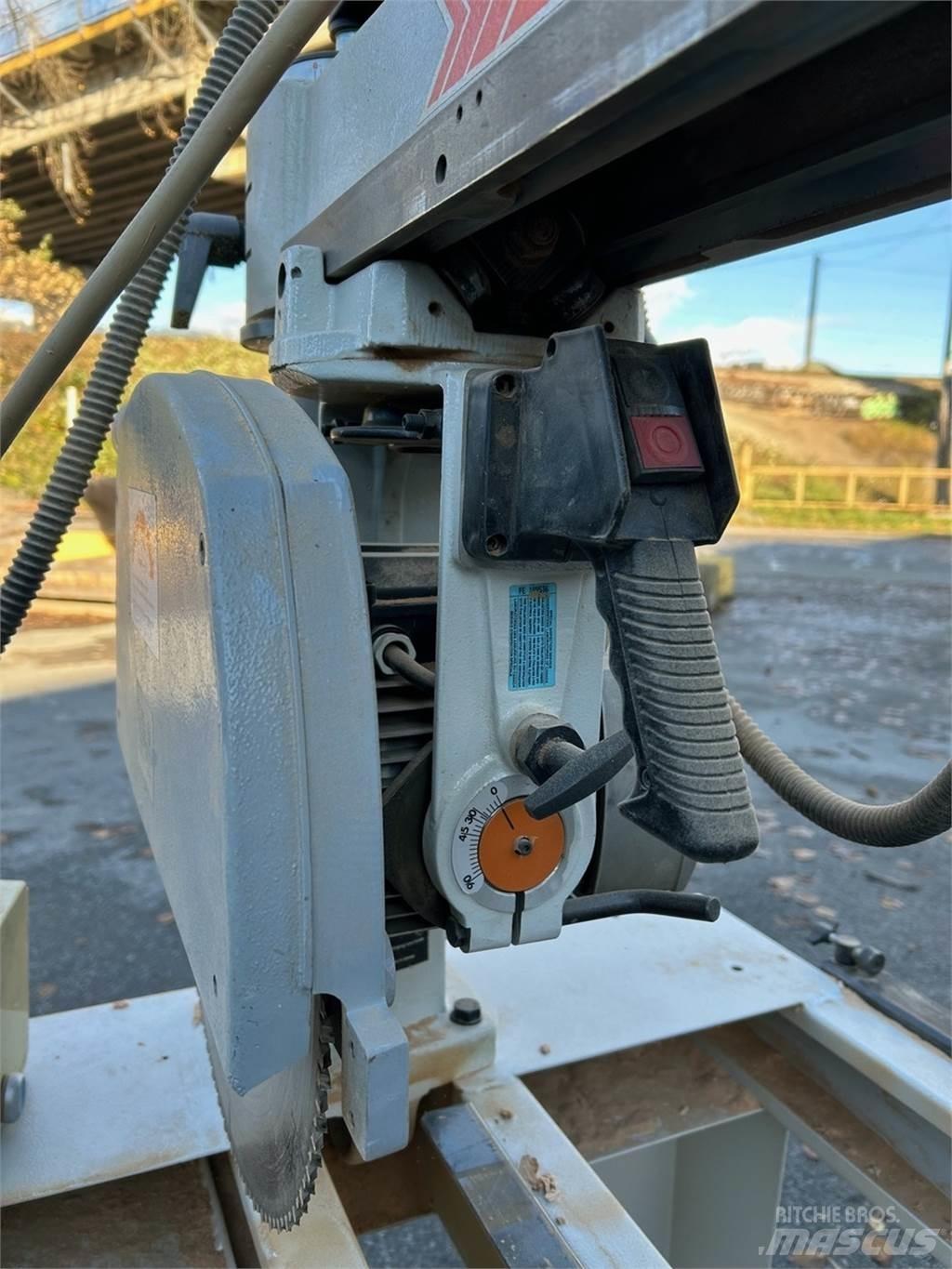

16" Radial Arm Saw Big 800 Title: 16" Radial Arm Saw Big 800 SKU: 129502 Model: Big 800 Year: 2006 Condition: Used S/N: 1550600149 GeneralHorsepower:4hp Blade Diameter:15.75 in Voltage:230volts Phase:3-phase Saw Type:Radial Arm Saws Made In: ITALY Dimensions: 63.00 (H) x 61.00 (W) x 67.00 (L) inches **Includes 2 saw blades Motor Speed: 2800 rpm Blade diameter: 400 mm | 15.75" Blade bore diameter: 30 mm | 1.18" Shaft dimension: 25 x 80 mm | 0.98" x 3.14" Dust chute diameter on blade guard: 60 mm | 2.36" Rear dust chute diameter: 100 mm | 3.93" Max. cutting height: 125 mm | 4.92" Max. cutting width: 705 x 20 h mm | 27.75" x 0.78" h Min. cutting width: 610 x 125 h mm | 24" x 4.92" h Height of blade at 45° from the table: 0 - 80 mm | 0 - 3.14" Min. and Max. cutting width at 45° (right): 430 - 500 mm | 16.92" - 19.68" Min. and Max. cutting width at 45° (left): 240 - 310 mm | 9.44" - 12.20" Height of blade from working bench: 0 - 45 mm | 0 - 1.77" Working bench dimensions: 1690 x 1155 x 25 mm | 66.5" x 45.5" x 0.98"Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
